I  Product Overview

       CL800 spectroradiometer is a portable illuminometer, independently developed by Huicolor Company. The illuminometer uses a high-precision concave grating as a spectroscopic component, which can collect the wavelength 350~800 nm, It outputs 1 nm interval irradiance spectrum, and the Ev range can reach up to 200,000 lx.

       The instrument is equipped with a 2.8-inch TFT capacitive touch screen, 4000mAh Li-ion battery, Bluetooth / WIFI multi-function chip, Mass storage device.

        The instrument can not only measure the irradiance spectrum, Ev , CCT, CRI, white balance, but also measure the parameters of leds for plant growth, UVI index, blue light hazard, display color gamut, uniformity, CQS, TM-30, TLCI-2012,flicker and other parameters.

II  Product Characteristics

     1. The instrument utilizes a high-precision concave grating as the spectral element and a 256-pixel CMOS as the detector. With a compact structure, it can measure the radiance spectrum of ambient light and flickering light sources within the wavelength range of 350-800nm, achieving high measurement accuracy, with a wavelength accuracy of 0.2 nm and a spectral output of 1nm.

       2. The instrument utilizes an industrial-grade MCU processor, equipped with a 2.8-inch TFT capacitive touch screen and up to 10,000 storage spaces. It features simple operation and stable performance.

      3. The instrument is equipped with a 4000mAh lithium-ion battery, offering a long standby time. It is also equipped with Type-C and Bluetooth 5.0 interfaces, with a reserved WIFI interface. These rich expansion interfaces are highly suitable for secondary development and have a wide range of application scenarios.

     4. A novel and fashionable appearance design based on ergonomics.

       5. The instrument can test not only spectrum, Ev , color temperature, color rendering index, but also white balance, plant growth lamp parameters, UVI index, blue light hazard, display color gamut, uniformity, CQS, TM-30 index, flicker frequency，transmittance and other parameters, with wide applications.

        6. The instrument has multiple testing functions, with the functional modules being humanizedly distinguished, and the operation is simple, smooth and fluent.

       7. The instrument is built with the radiation spectra of standard illuminants such as D65, A, C, D50, and D75. In the comparison mode, it is very convenient to conduct spectral comparisons with the samples to be tested.

       8. The measurement interface of the instrument can be locked to avoid misoperation; the measurement head of the instrument is detachable and can be installed in the opposite direction by 180 degrees, which is convenient to use.

       9. The instrument test results have a good matching with the data of the  high-quality spectroradiometer recognized in the industry.

      10. The instrument is widely applied in LED lighting industry, engineering lighting, smart agriculture, display screens, TV multimedia, eye-protecting lamps, UV ultraviolet, and so on.

      11. The instrument has professional PC software, Rich SDK (support C # , C + + , Python, LabView and other platforms) .

III  Applications

3.1 LED and solid-state lighting source spectrum, Ev, color temperature, color rendering index, uniformity, dominant wavelength, S/p, luminous flux and other parameters test

       CL800 spectroradiometer stand-alone instrument can easily realize spectrum, Ev, color temperature, color rendering index, dominant wavelength, S/P, peak wavelength, plant lamp parameters, flicker, flash measurement, camera white balance and other parameters measurement.

       The luminous flux can be measured by integrating sphere. With the help of professional HIQC software, the chromaticity coordinate measurement and classification of LED solid-state light source can be easily realized.

3.2 PAR,PPFD,YPFD,E-ch A/B,Erb-p measurement of leds for plant in smart agriculture

      CL800 spectroradiometer stand-alone instrument can easily achieve spectrum, Ev, photosynthetically active radiation PAR, photosynthetic photon flux density PPFD, photosynthetically active photon flux density YPFD, chlorophyll weighted irradiance E-ch A and E-ch B, photosynthetic irradiance E-P, photosynthetic red-blue irradiance ratio Erb-p, etc. .

3.3 Color temperature(CCT), Color rendering index(CRI), Uniformity measurement of Light box or Display panel

       The main technical indexes of the light box include the following: the standardization of the spectral distribution of the light source, the display uniformity of the illumination of the light source, the stability of the light source, the color temperature and color rendering index of the light source, and the life of the light source. CL800 spectroradiometer can easily measure the stability, uniformity and spectral matching of the light box.

3.4 Transmittance Test

        Transmittance is the ratio of the luminous flux (radiant flux) of light passing through the measured object to the incident luminous flux (radiant flux) . The transmittance of visible light is usually the ratio of the luminous flux of visible light at wavelengths of 380-780 nm, UVA transmissivity is usually the ratio of UVA to UVA radiation flux, and IR transmissivity is the ratio of IR radiation flux at wavelengths over 780 nm.

        LED light source or halogen tungsten lamp is usually used as the lighting source in the transmissometer. From the test results, different lighting sources have a certain influence on the transmittance test results, usually affecting about 5% .

        Many standards and documents clearly state that the D65 standard illuminator is the most ideal illuminator for transmissometers. The D65 standard lighting source is the Earth's average northern hemisphere solar spectrum, so the transmittance tested under this light source condition is very representative and easily accepted by the public. For example, outdoor glass, UV sunscreen glasses and other related standards clearly state that the D65 light source should be used for transmittance testing. However, the light source used by the common transmittance meter is far from the D65 standard lighting source, so the test results are not very good.

        CL800 spectroradiometer can use outdoor sunlight (as close as possible to the D65 standard lighting source) as the lighting source, after two tests, very convenient test glasses, architectural glass in D65 standard lighting source under the condition of transmittance.

3.5 Camera White Balance

       When the camera is taking pictures, the lighting environment, the sensor response characteristics, the lens filter and the exposure parameters have a certain influence on the imaging quality. When the lighting environment and the sensor matching degree are not high, the image quality can be optimized by adjusting the lens filter. The CL800 illuminometer gives the corresponding white balance correction filter number by measuring the illumination source. In the white balance diagram of the instrument test, the abscissa represents the color temperature difference between the current test sample and the target comparison sample; the ordinate represents the compensation filter number value, and the suffix G represents the green filter, suffix M means magenta filter. The instrument supports Kodak G/M series compensation filter by default, need other brands or series of filters can find manufacturers for personalized customization.

IV  Dimensions

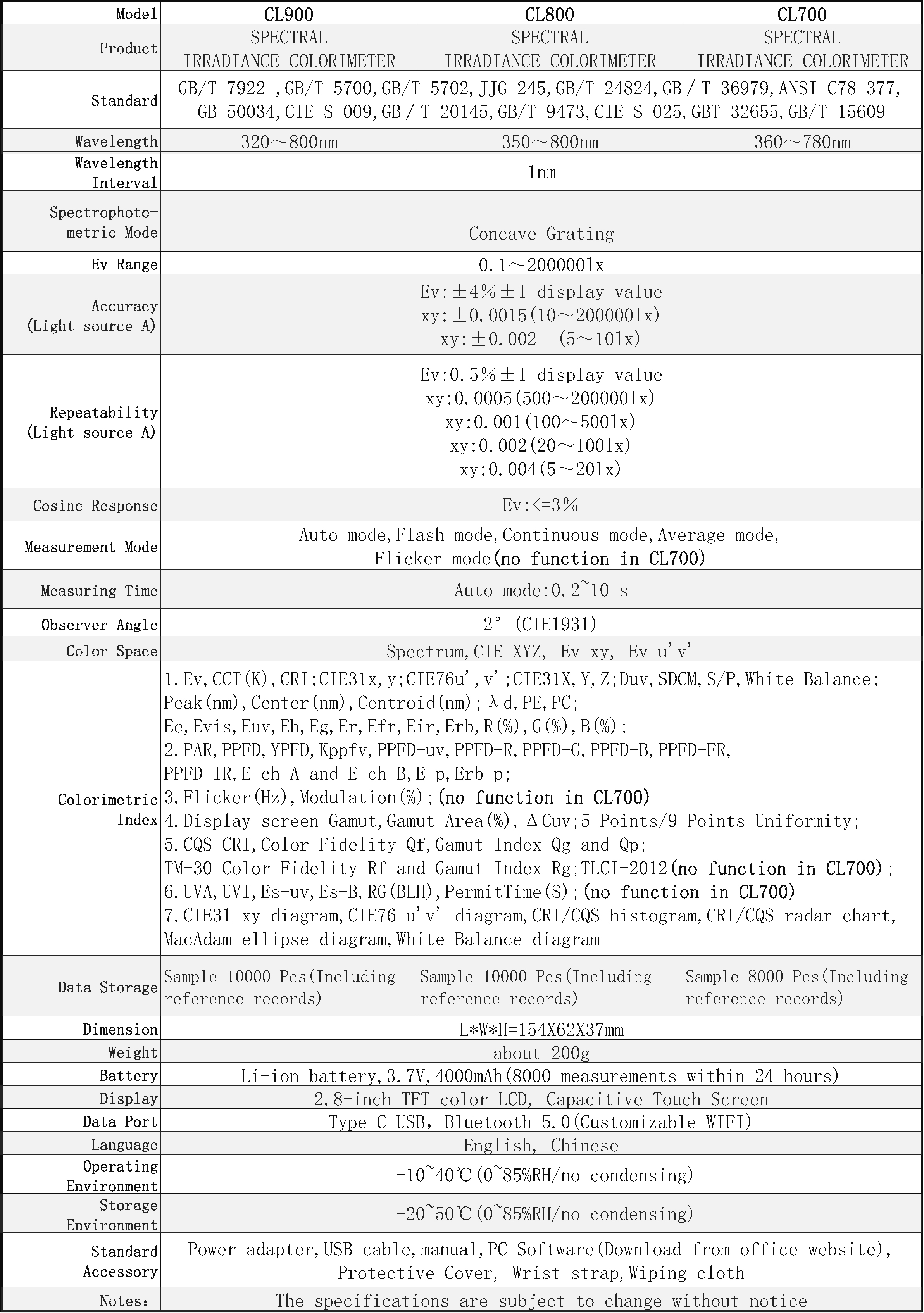

V  Technical Parameter
