I  Product Overview

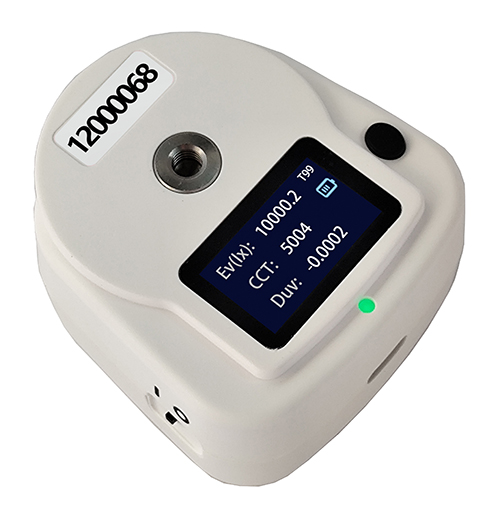

    CL300 is a cost effective illuminometer. The instrument uses XYZ filter+CMOS detector to collect the three stimulus values XYZ of the light source, and then calculates the Ev and chromaticity coordinates of the light source. The Ev range can reach up  to 200,000 lx.

    The instrument is equipped with a 1.14-inch TFT screen, 800 mAh Li-ion battery, Bluetooth / WIFI multi-function chip, Mass storage device.

     The instrument has single measurement and continuous measurement modes. The instrument can be measured by a stand-alone machine, and can also be connected to a computer or an APP through USB or Bluetooth. It has powerful functions, simple operation and high cost performance.

     The instrument has rich interfaces, compact structure and high cost performance, which is very suitable for embedding into other equipment as a light detection module and widely used in the following areas: automatic detection of light source modules or ambient light.

    CL300 is an entry-level illuminance colorimeter suitable for applications with low measurement accuracy. The instrument can measure Ev, CCT, chromaticity coordinates, main wavelength, Duv, transmittance, luminous intensity and other parameters.

Figure 1

II  Product Characteristics

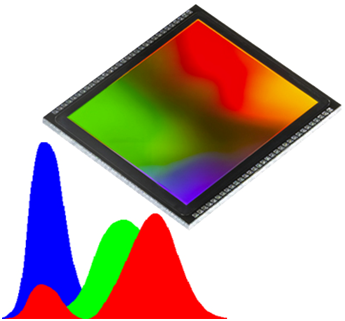

    1. The instrument uses XYZ filter & CMOS detector to collect the three stimulus values XYZ of the illumination light source or display in the range of 400-700nm, and then calculates the Ev, chromaticity coordinates, and color temperature of the sample, which is cost-effective.

Figure 2

      2. The instrument adopts Internet of things MCU processor, configuration 1.14 inch TFT color screen, can store 99 records of data, simple operation, easy to expand and secondary development.

Figure 3

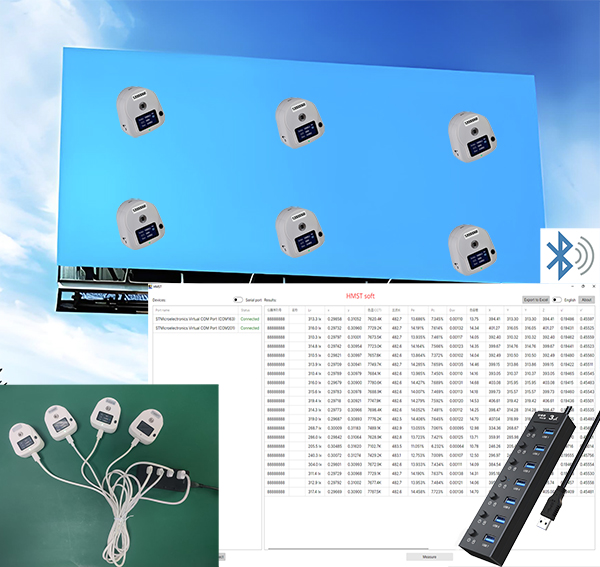

     3. The instrument is equipped with a 800 mAh lithium-ion battery. It is also equipped with Type-C and Bluetooth 5.0 interfaces, with a reserved WIFI interface. These rich expansion interfaces are highly suitable for secondary development and have a wide range of application scenarios.

Figure 4

      4. The instrument has compact appearance design, convenient interface design, and is easy to be used as a link of Internet of things and embedded in other modules.

Figure 5

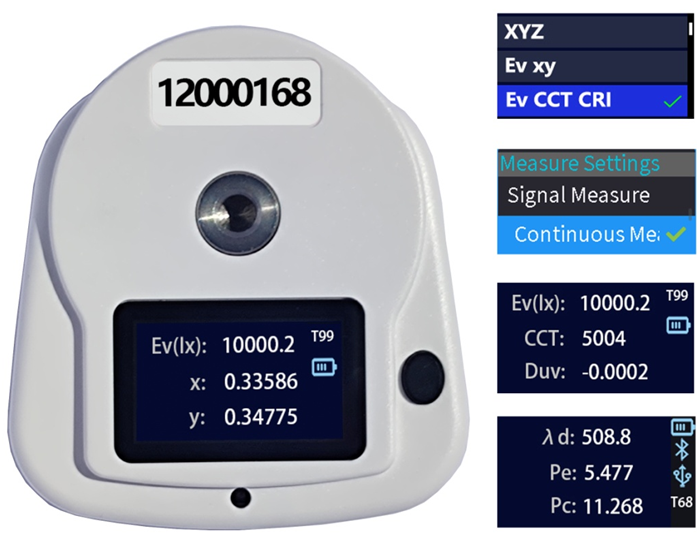

     5. The instrument can test Ev , color temperature, SDCM, Duv, and other parameters.

Figure 6

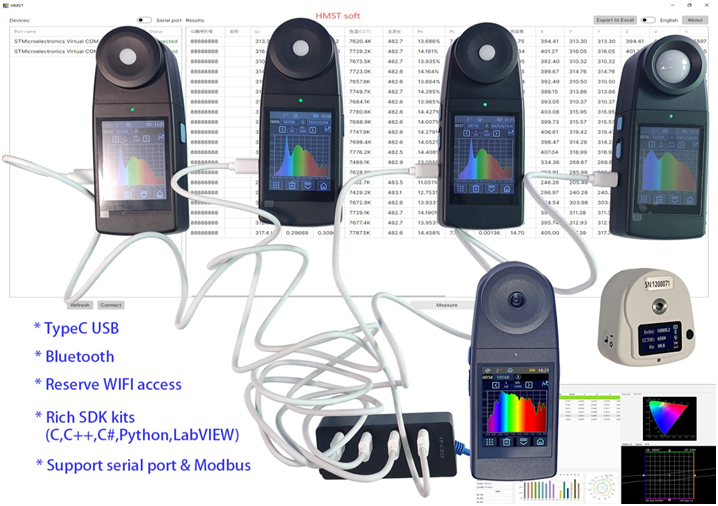

     6. The instrument has M5 metric stainless steel nuts, and supports serial port, Modbus, Bluetooth communication, and has a rich SDK development kit, can be quickly deployed in C++ , C # , Python, LabVIEW platform to run, make it widely used in the automatic industry.

Figure 7

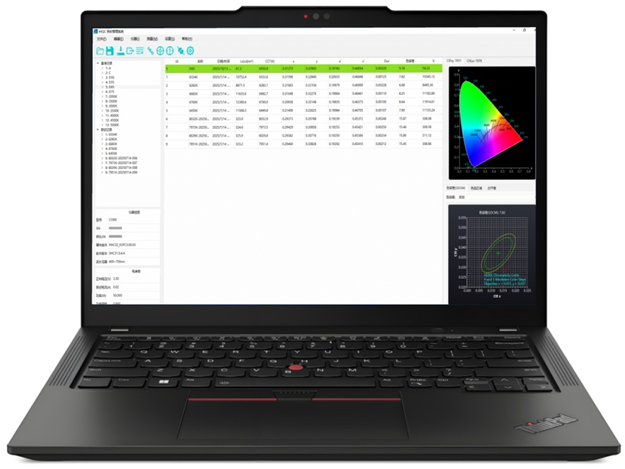

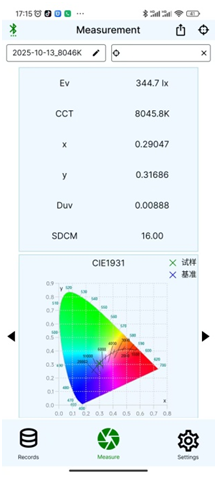

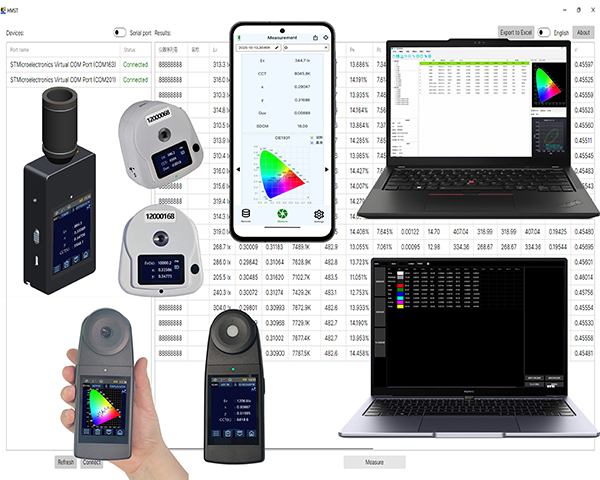

      7. The instrument has professional PC software, Rich SDK (support C # , C + + , Python, LabView and other platforms) .

Figure 8

III  Applications

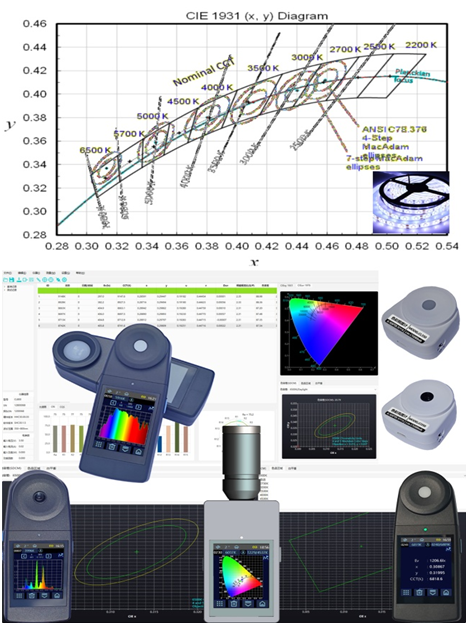

     3.1 LED and solid-state lighting source spectrum, Ev, color temperature, uniformity, dominant wavelength, and other parameters test

CL300 color illuminometer stand-alone instrument can easily realize spectrum, Ev, color temperature, dominant wavelength, and other parameters measurement.

     The luminous flux can be measured by integrating sphere. With the help of professional HIQC software, the chromaticity coordinate measurement and classification of LED solid-state light source can be easily realized.

Figure 9

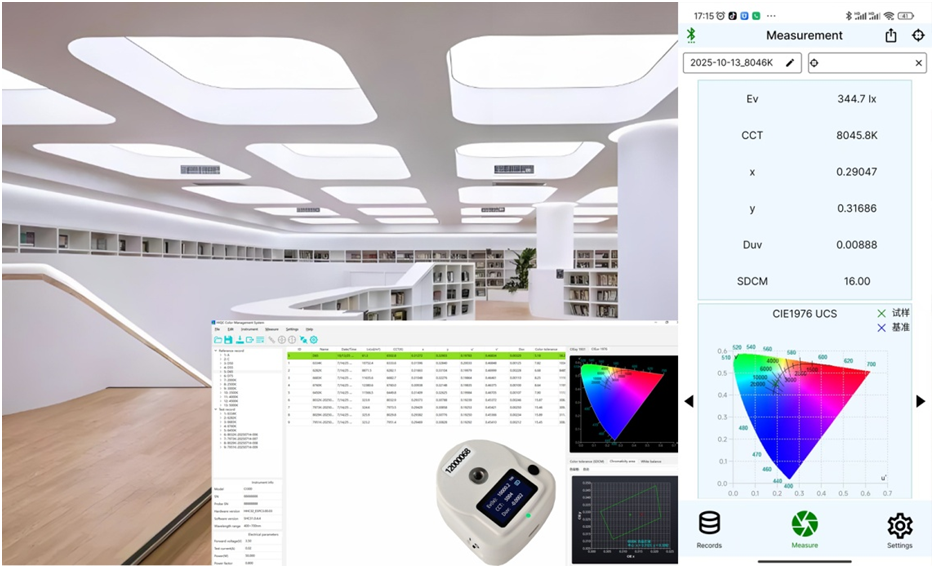

      3.2 Illuminance, color temperature, dominant wavelength measurement for library and office lighting sources

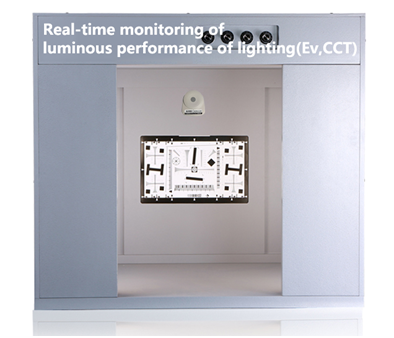

Many lighting standards have certain requirements for the illumination, color temperature, color rendering index and other indicators of municipal engineering lighting and office lighting. CL300 colorimeter can be used to measure the above indicators in real time.

Figure 10

      3.3 Realize high-speed continuous measurement of illuminance and further calculate Flicker

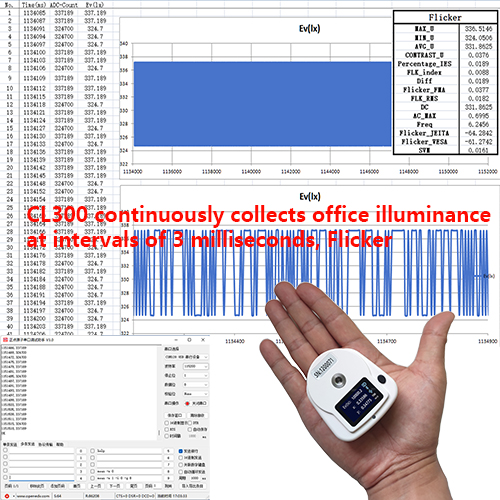

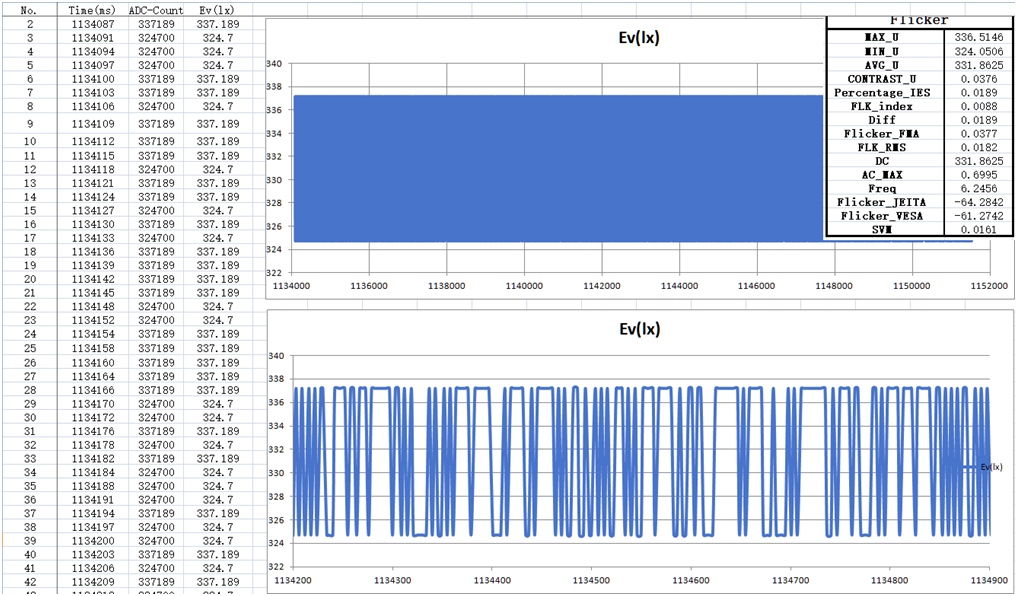

      The CL300 illuminance meter has conventional measurement mode, continuous measurement mode, and high-speed measurement mode. In high-speed measurement mode, the instrument continuously tests the illumination of the light source at a testing speed of 3 milliseconds per test, and can further calculate the spectrum and Flicker of the light source. For detailed usage instructions, please consult technical support.

Figure 11

IV  Dimensions

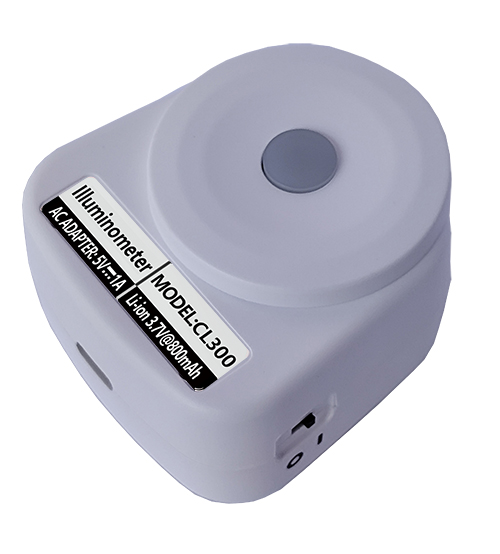

Figure 12

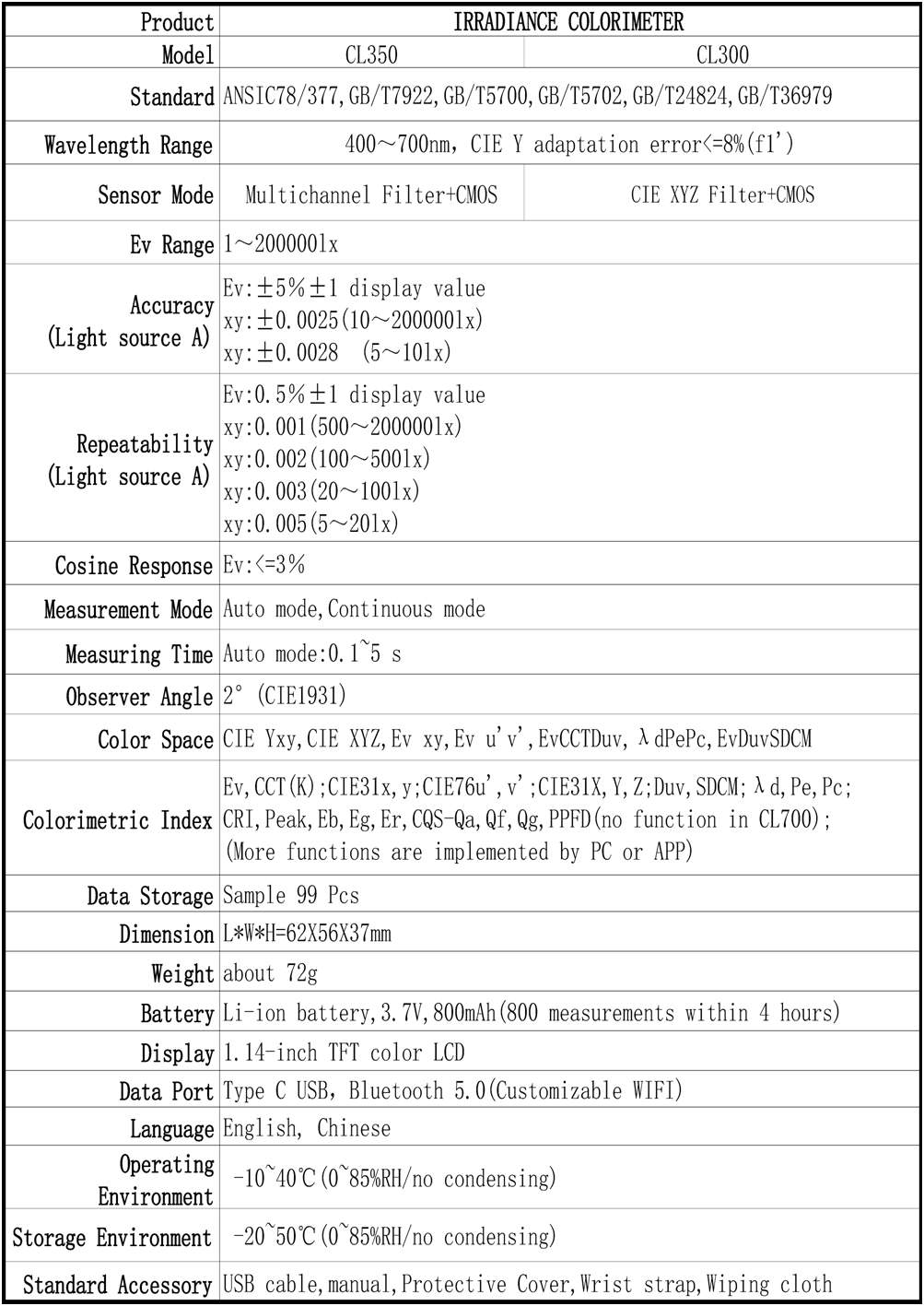

V  Technical Parameter
