I  Product Overview

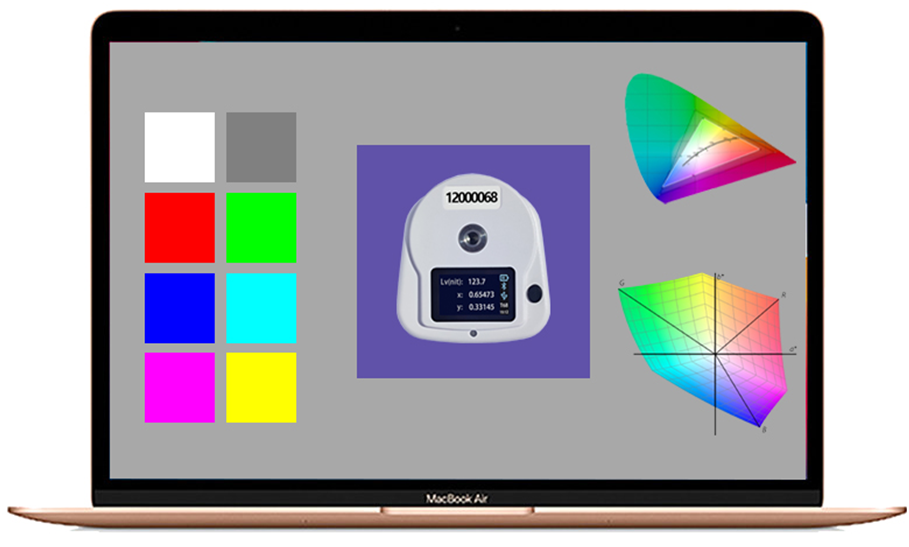

     CI300 is a cost effective luminance colorimeter. The instrument uses XYZ filter+CMOS detector to collect the three stimulus values XYZ of the light source, and then calculates the luminance and chromaticity coordinates of the light source. The instrument has a measuring angle of 1 ° , a minimum measuring area of Φ6mm and a maximum measuring range of 100,000 cd/㎡.

     The instrument is equipped with a 1.14-inch TFT screen, 800 mAh Li-ion battery, Bluetooth / WIFI multi-function chip, Mass storage device.

The instrument can measure the luminance(Lv), color temperature, chromaticity coordinates, main wavelength, display gamut, panel uniformity, and other parameters.

     The instrument is equipped with single measurement, continuous measurement, easy to operate. The instrument has rich interfaces, compact structure and high cost performance, which is very suitable for embedding into other equipment as a light detection module.

Figure 1

II  Product Characteristics

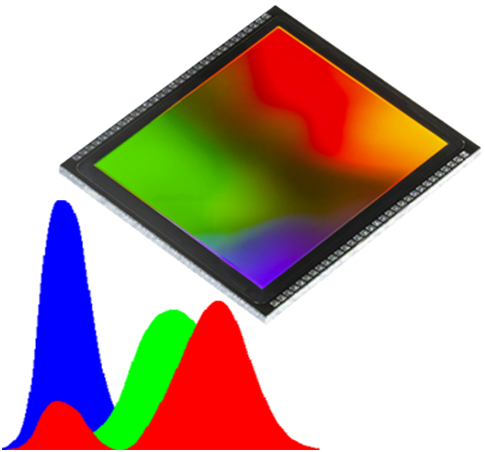

    1. The instrument uses XYZ filter+CMOS detector to collect the three stimulus values XYZ of the illumination light source or display in the range of 400-700nm, and then calculates the luminance(Lv), chromaticity coordinates, and color temperature of the sample to be tested, which is cost-effective.

Figure 2

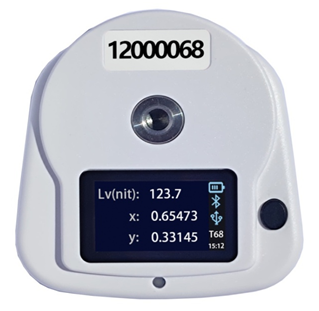

    2. The instrument adopts Internet of things MCU processor, configuration 1.14 inch TFT color screen, can store 99 records of data, simple operation, easy to expand and secondary development.

Figure 3

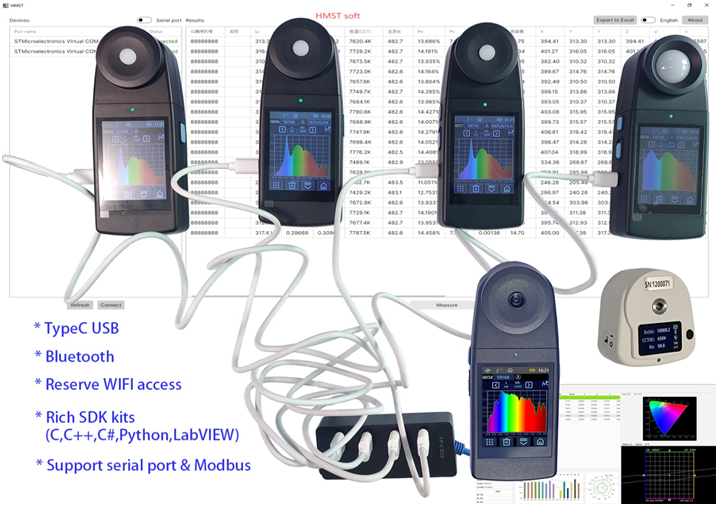

     3. The instrument is equipped with a 800 mAh lithium-ion battery. It is also equipped with Type-C and Bluetooth 5.0 interfaces, with a reserved WIFI interface. These rich expansion interfaces are highly suitable for secondary development and have a wide range of application scenarios.

Figure 4

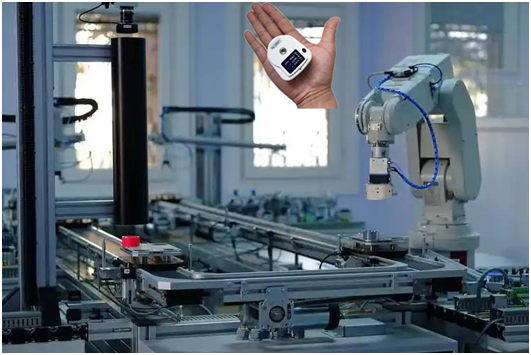

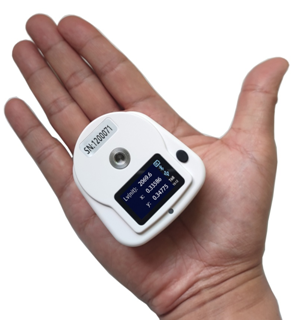

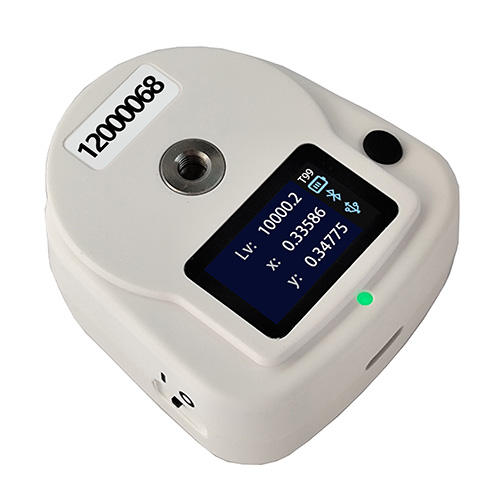

      4. The instrument has compact appearance design, convenient interface design, and is easy to be used as a link of Internet of things and embedded in other modules.

Figure 5

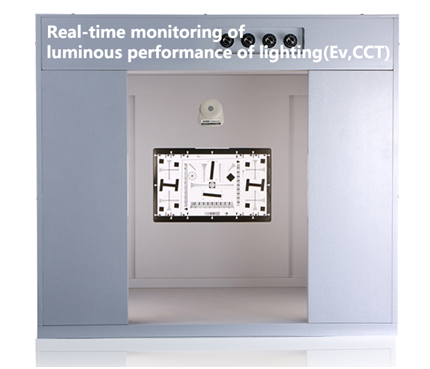

      5. The instrument is widely applied in LED lighting industry, engineering lighting, display screens, TV multimedia, and so on.

      6. The instrument has M5 metric stainless steel nuts, and supports serial port, Modbus, Bluetooth communication, and has a rich SDK development kit, can be quickly deployed in C++ , C # , Python, LabVIEW platform to run, make it widely used in the automatic industry.

Figure 6

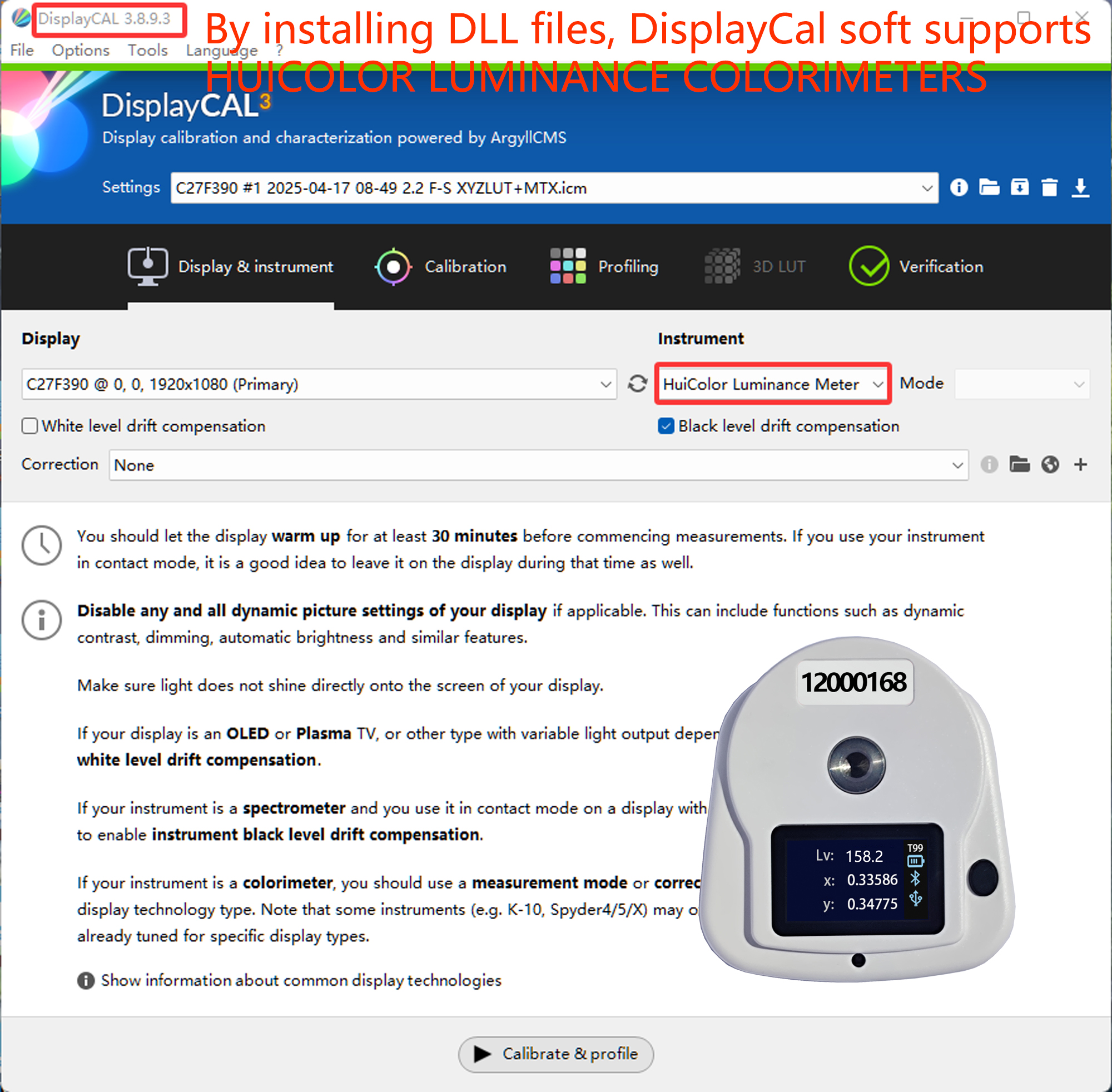

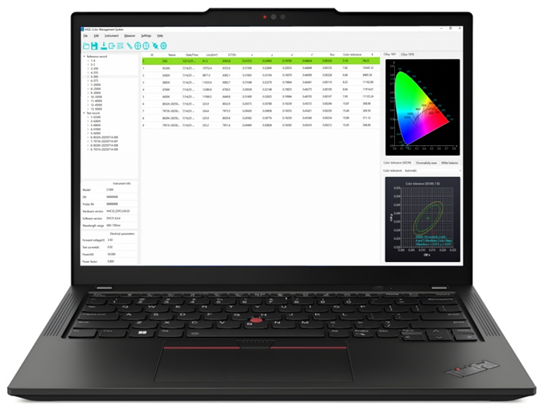

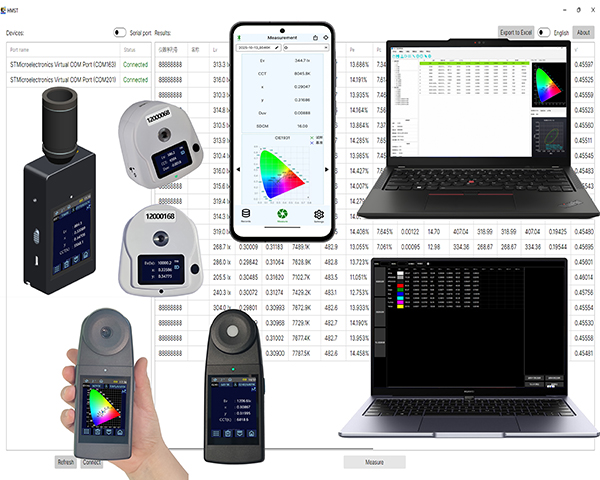

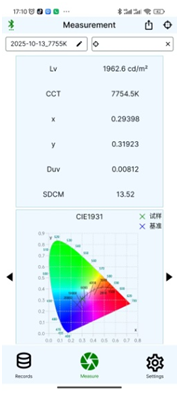

     7. The instrument has professional PC software, android mobile app, Rich SDK (support C # , C + + , Python, LabView and other platforms) .

Figure 7

III  Applications

      3.1 Lv and chromaticity coordinates  measurement of Display panel/LCD

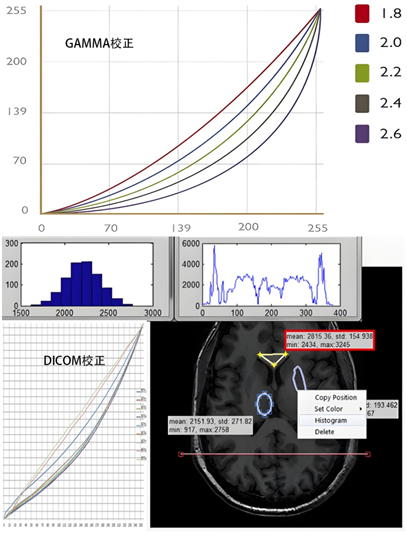

      In a darkroom environment, the display/LCD panel is powered on and warmed up for half an hour. The CI300 is fixed on a mounting fixture, ensuring its optical axis is perpendicular to the display surface, with the probe positioned approximately 30mm from the display surface (or the measurement port is pressed tightly against the screen). The display panel is controlled to show different colors, and the CI300 captures the Lv, chromaticity coordinates, and spectral radiance of the screen at a 1° measurement angle. Based on this data, the display's color gamut and uniformity can be calculated, and functions such as GAMMA/DICOM/color calibration can be performed.

Figure 8

Figure 9

Figure 10

     3.2 LED and solid-state lighting source spectrum, Lv, color temperature, dominant wavelength, and other parameters test

     CI300 luminance colorimeter stand-alone instrument can easily realize Lv, color temperature, dominant wavelength, and other parameters measurement.

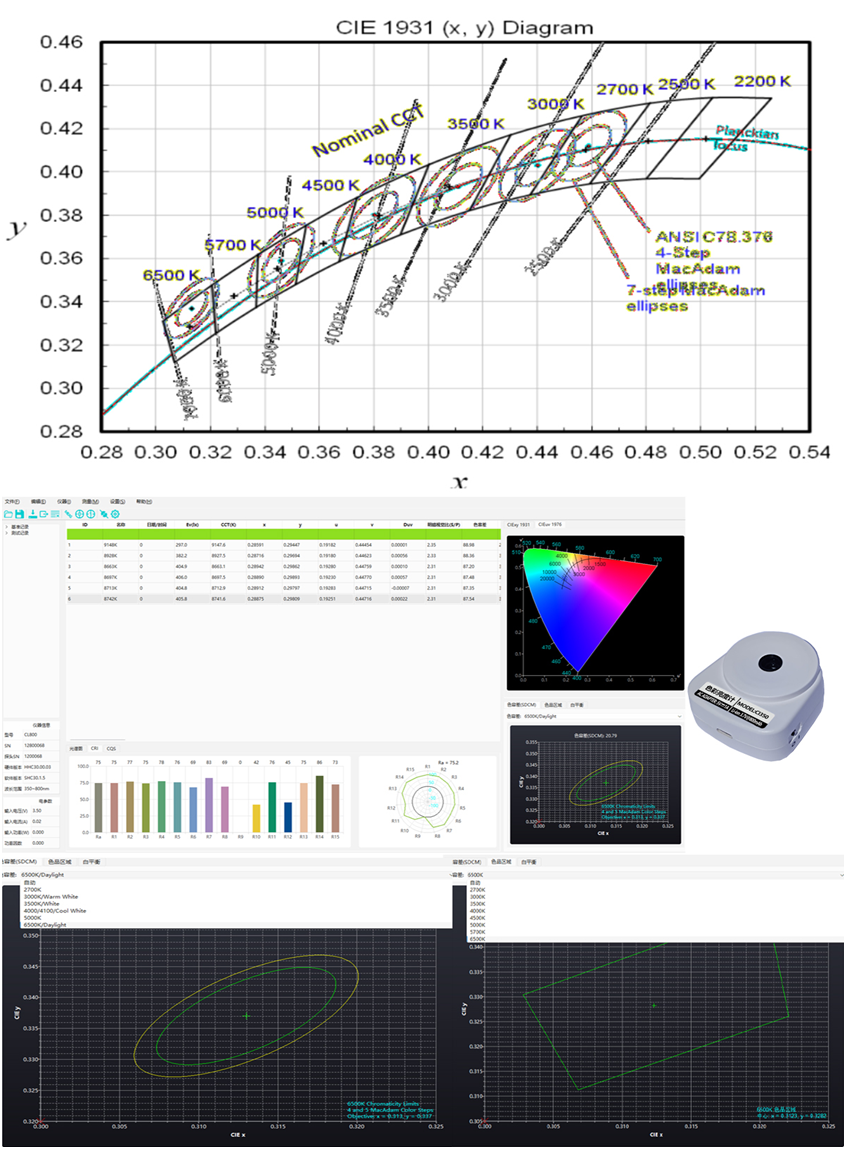

     The luminous flux can be measured by integrating sphere. With the help of professional HIQC software, the chromaticity coordinate measurement and classification of LED solid-state light source can be easily realized.

Figure 11

       3.3 A cost-effective testing solution for luminance and color coordinates of displays

       The LCD panel/OLED panel/miniLED panel industry requires high testing accuracy for luminance, and color coordinates, and must be consistent with data from specific brand instruments (standard machines). The testing principle of irradiance/ luminance colorimeter using coated filter plates+CMOS/PD silicon photovoltaic cell detectors usually has CIEXYZ adaptation errors, which can result in slightly lower testing accuracy and data consistency for this type of irradiance/ luminance colorimeter.

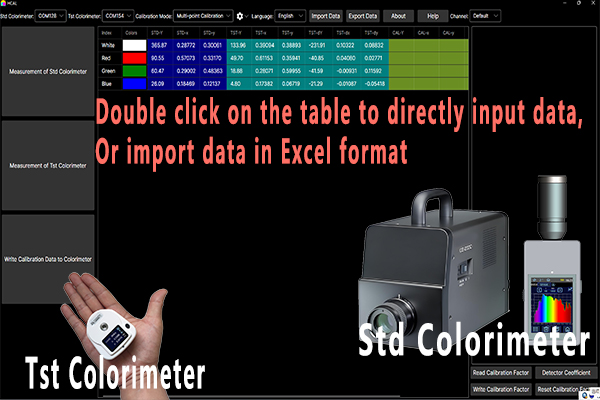

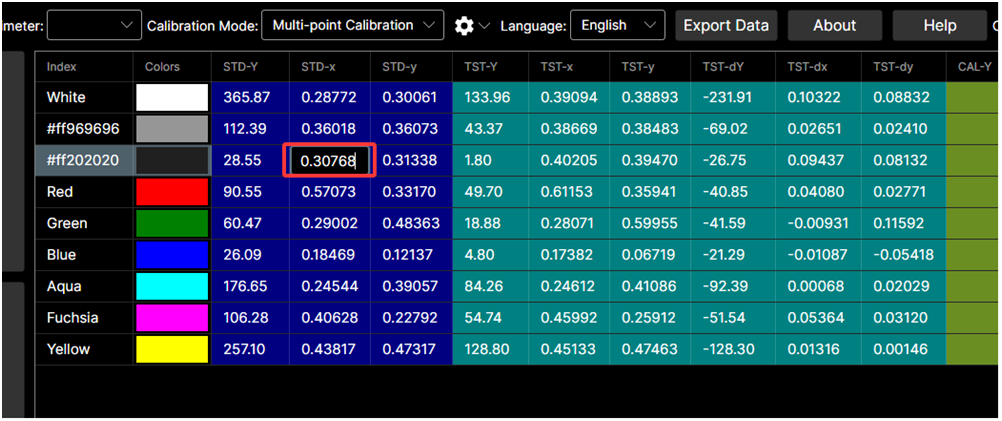

       In this case, HCAL software can be used to calibrate this type of irradiance/ luminance colorimeter. If the calibration is reasonable and compared with standard machine test data, the calibrated irradiance/ luminance colorimeter usually has a luminance accuracy of 3% and an average chromaticity coordinate xy error of 0.003.

Figure 12

IV  Dimensions

Figure 13

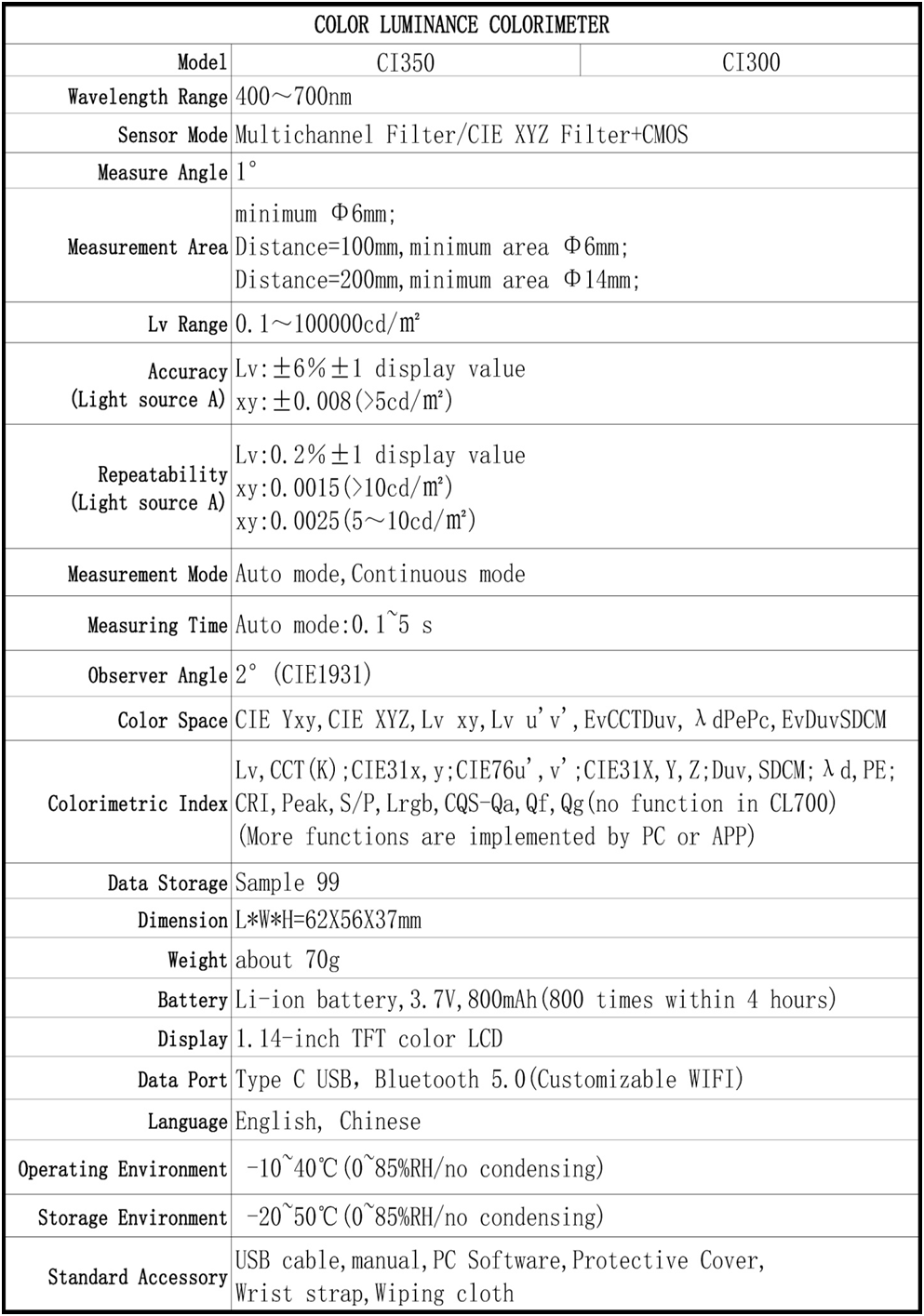

V  Technical Parameter
