I  Product Overview

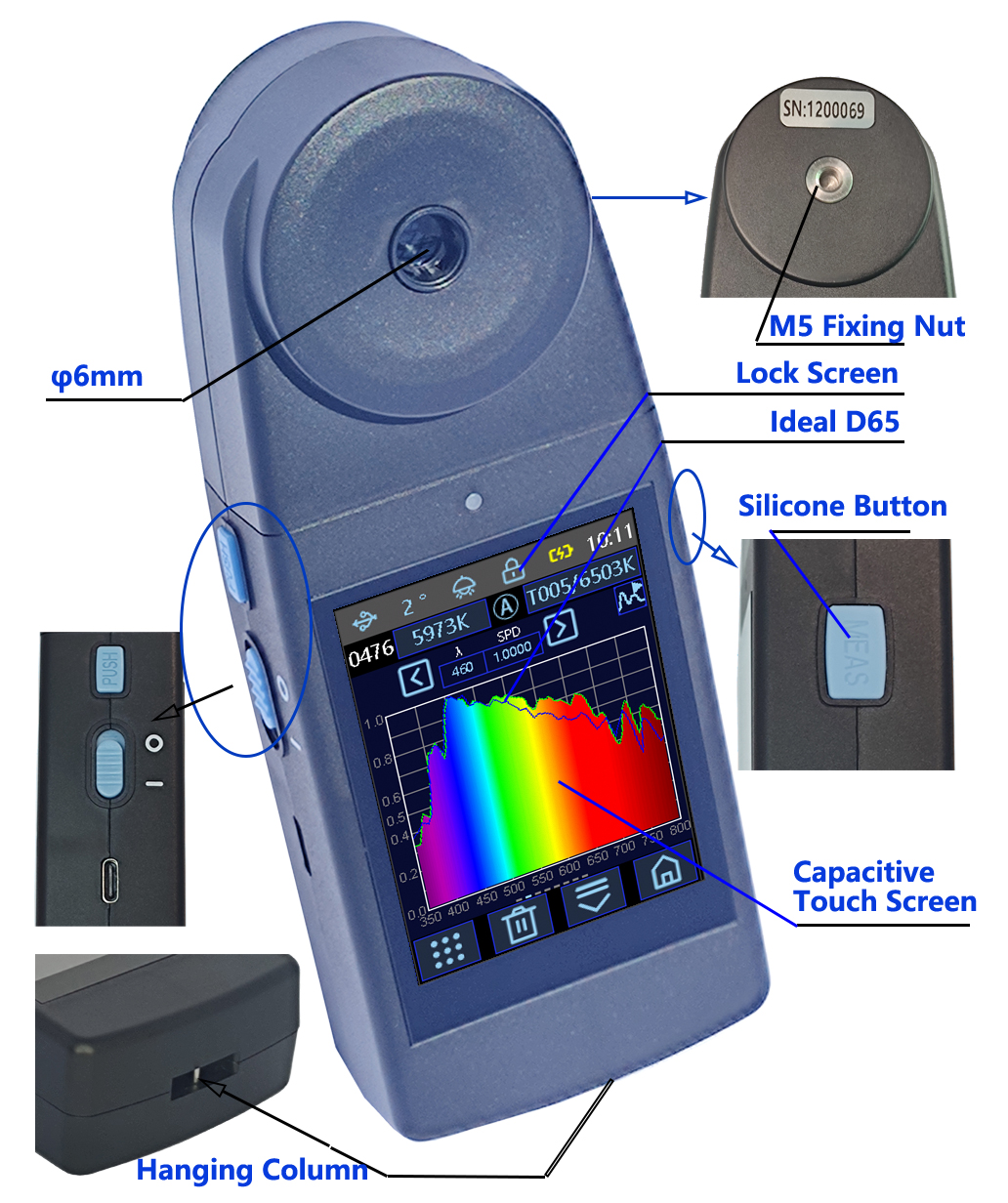

      CI800 spectroradiometer is a portable luminance colorimeter, independently developed by Huicolor Company. The colorimeter uses a high-precision concave grating as a spectroscopic component, which can collect the wavelength 350~800 nm, It outputs 1 nm interval radiance spectrum. The instrument has a measuring angle of 1 ° , a minimum measuring area of φ6 mm and a maximum measuring range of 200,000 cd/㎡.

      The instrument is equipped with a 2.8-inch TFT capacitive touch screen, 4000 mAh lithium-ion battery, Bluetooth WIFI multifunctional chip, and large capacity memory.

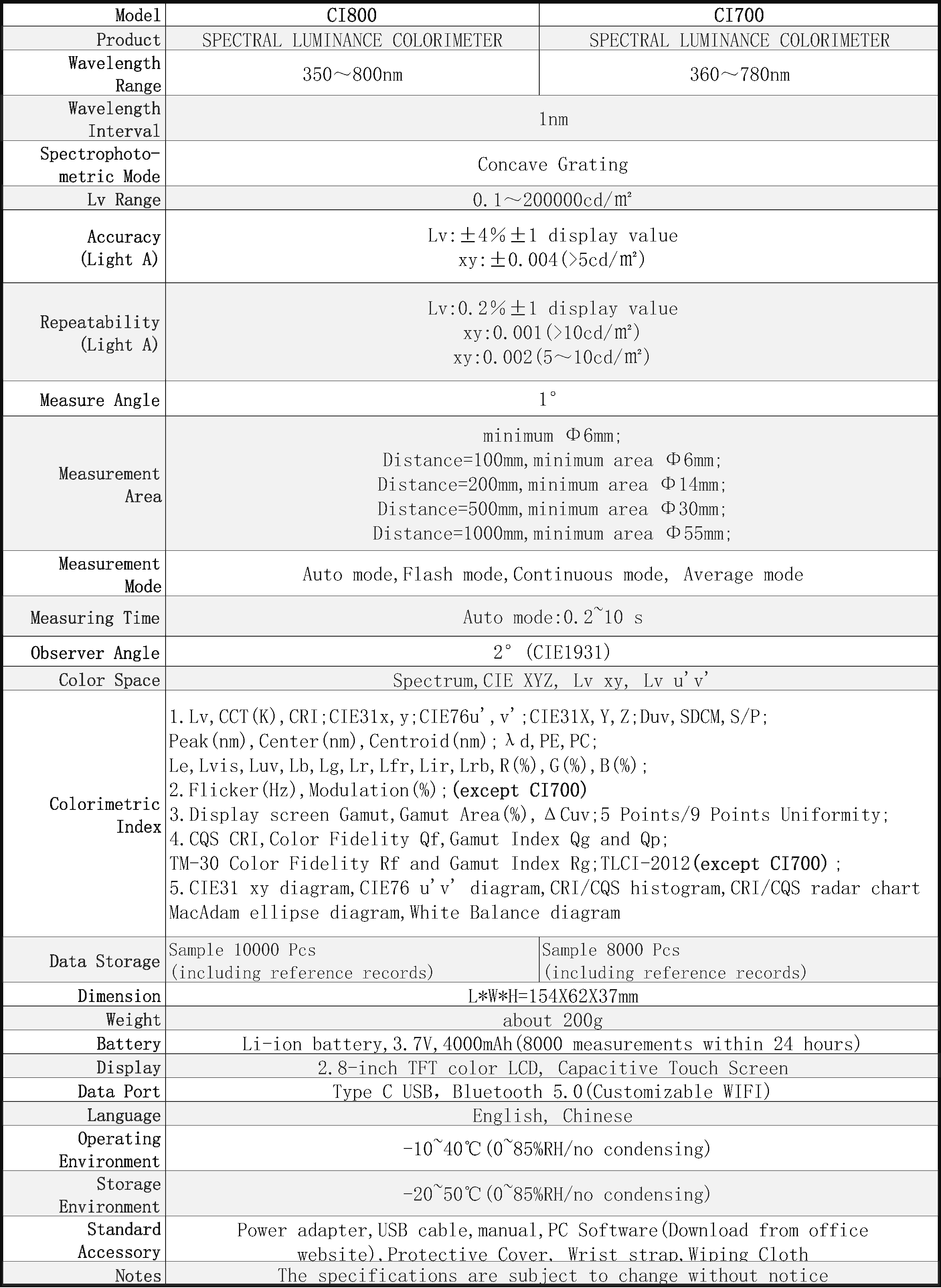

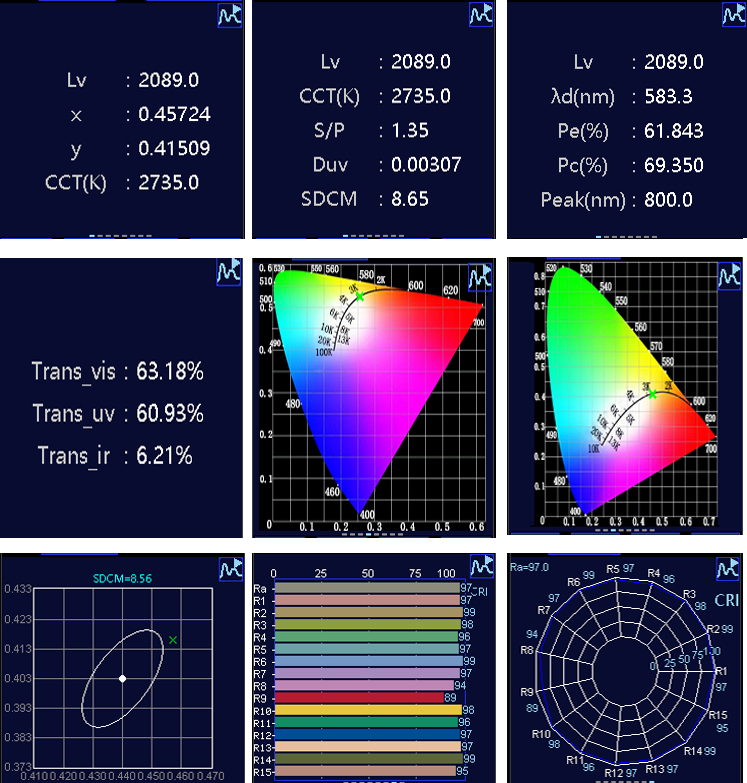

      The instrument can not only measure the radiance spectrum, Lv, color temperature, color rendering index, chromaticity coordinates, main wavelength, peak wavelength, you can also measure display gamut, panel uniformity, CQS, TM-30, TLCI-2012, flicker frequency and other parameters.

      The instrument is equipped with single measurement, average measurement, continuous measurement, flash measurement, scintillation frequency and other measurement modes, easy to operate, accurate and stable measurement.

II  Product Characteristics

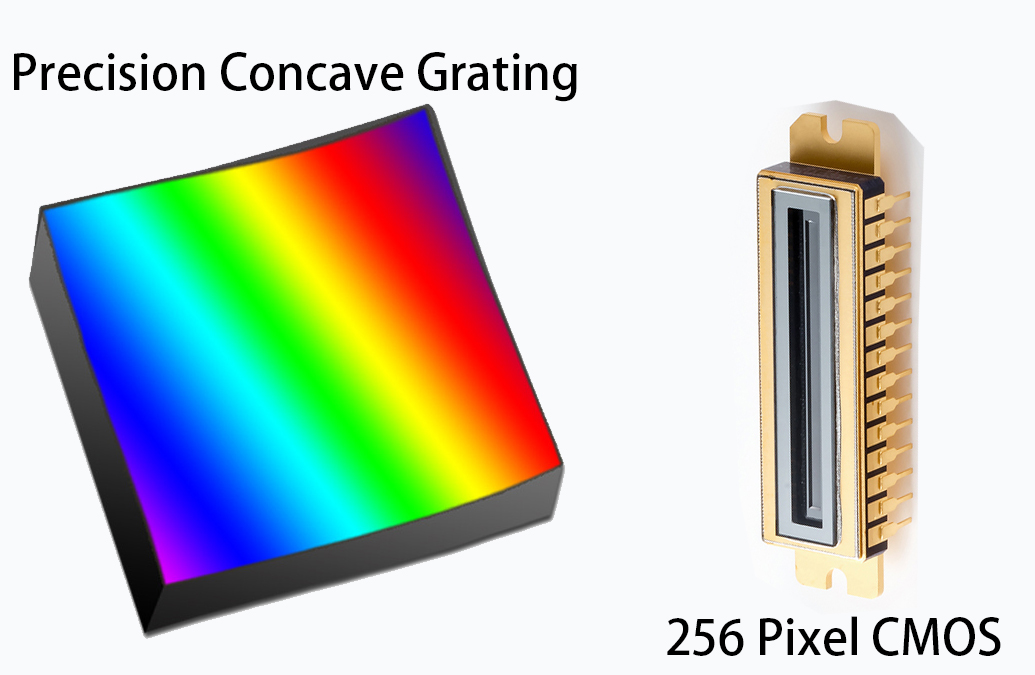

      1. The instrument utilizes a high-precision concave grating as the spectral element and a 256-pixel CMOS as the detector. With a compact structure, it can measure the radiance spectrum of ambient light and flickering light sources within the wavelength range of 350-800nm, achieving high measurement accuracy, with a wavelength accuracy of 0.2 nm and a spectral output of 1nm.

      2. The instrument utilizes an industrial-grade MCU processor, equipped with a 2.8-inch TFT capacitive touch screen and up to 10,000 storage spaces. It features simple operation and stable performance.

      3. The instrument is equipped with a 4000 mAh lithium-ion battery, offering a long standby time. It is also equipped with Type-C and Bluetooth 5.0 interfaces, with a reserved WIFI interface. These rich expansion interfaces are highly suitable for secondary development and have a wide range of application scenarios.

       4. A novel and fashionable appearance design based on ergonomics.

       5. The instrument can test not only spectrum, Lv, color temperature, color rendering index, but also white balance, transmittance, display color gamut, uniformity, CQS, TM-30 index, flicker frequency and other parameters, with wide applications.

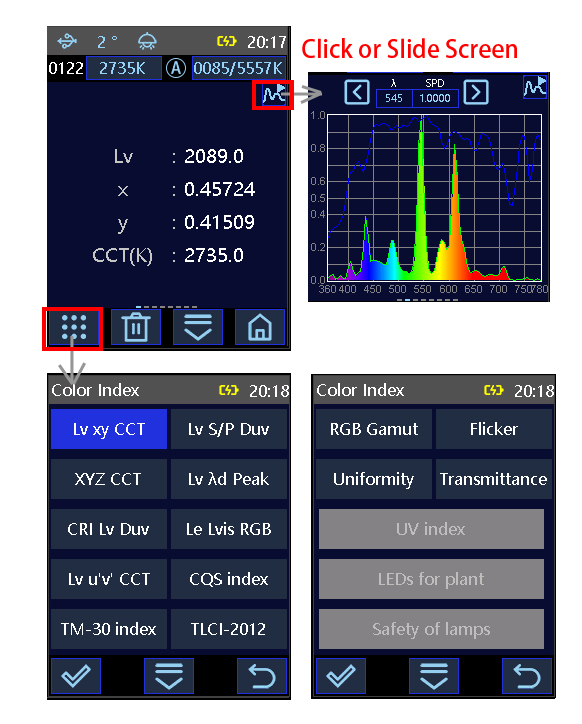

       6. The instrument has multiple testing functions, with the functional modules being humanizedly distinguished, and the operation is simple, smooth and fluent.

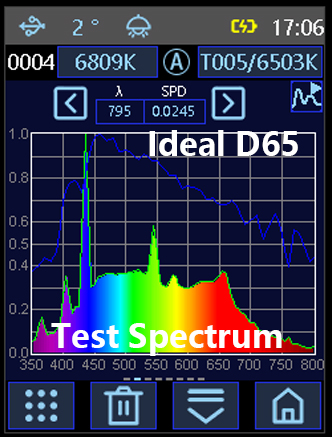

       7. The instrument is built with the radiation spectra of standard illuminants such as D65, A, C, D50, and D75. In the comparison mode, it is very convenient to conduct spectral comparisons with the samples to be tested.

       8. The measurement interface of the instrument can be locked to avoid misoperation; the measurement head of the instrument is detachable and can be installed in the opposite direction by 180 degrees, which is convenient to use.

       9. The instrument test results have a good matching with the data of the  high-quality luminance colorimeter recognized in the industry.

      10. The instrument is widely applied in LED lighting industry, engineering lighting, display screens, TV multimedia, eye-protecting lamps, UV ultraviolet, and so on.

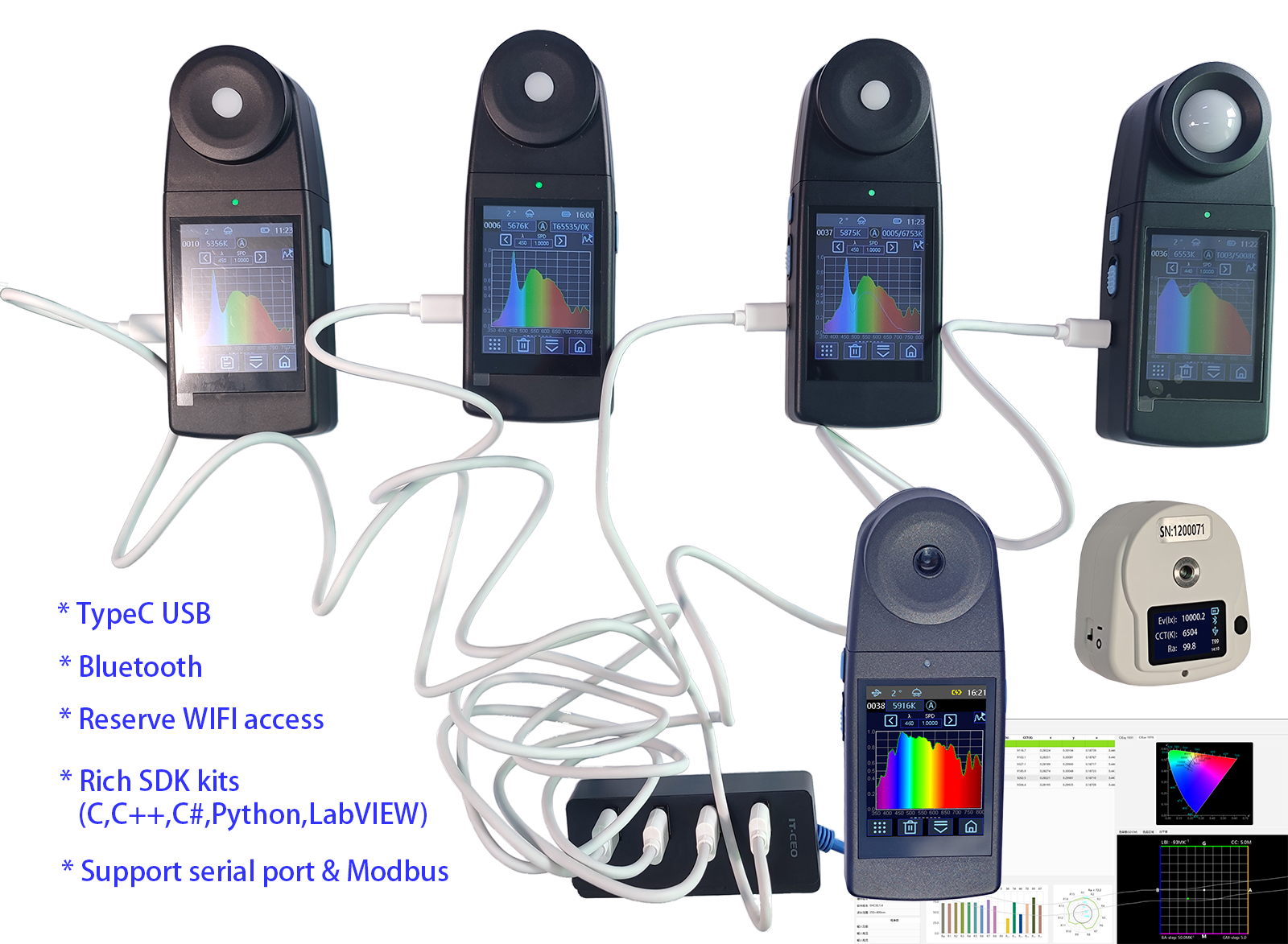

      11. The instrument has professional PC software, Rich SDK (support C # , C + + , Python, LabView and other platforms) .

III  Applications

3.1 LED and solid-state lighting source spectrum, Lv, color temperature, color rendering index, uniformity, dominant wavelength, S/p, luminous flux and other parameters test

        CI800 spectral luminance colorimeter stand-alone instrument can easily realize spectrum, Lv, color temperature, color rendering index, dominant wavelength,S/P, peak wavelength, plant lamp parameters, flicker, flash measurement, camera white balance and other parameters measurement.

        The luminous flux can be measured by integrating sphere. With the help of professional HIQC software, the chromaticity coordinate measurement and classification of LED solid-state light source can be easily realized.

3.2 Lv and chromaticity coordinates  measurement of Display panel/LCD

      In a darkroom environment, the display panel/LCD will be lit and preheated for half an hour. The CI800 spectroradiometer is fixed on the fixture, so that the test optical axis of the luminance meter is perpendicular to the display panel/LCD surface, and the distance between the probe of the luminance meter and the display panel/LCD surface is about 200 mm, or a luminometer probe is attached to the display panel/LCD surface. The control display panel/LCD displays different colors, and the CI800 spectroradiometer measures the Lv, chromaticity coordinates and radiance spectrum of the display panel/LCD, and then calculates the color gamut, uniformity of the display panel/LCD, and can do GAMMA/DICOM/color correction.

3.3 Color temperature(CCT), Color rendering index(CRI), Uniformity measurement of Light box or Display panel

      The main technical indexes of the light box include the following: the standardization of the spectral distribution of the light source, the display uniformity of the illumination of the light source, the stability of the light source, the color temperature and color rendering index of the light source, and the life of the light source. CI800 spectroradiometer can easily measure the stability, uniformity and spectral matching of the light box.

3.4 Transmittance Test

       Transmittance is the ratio of the luminous flux (radiant flux) of light passing through the measured object to the incident luminous flux (radiant flux) . The transmittance of visible light is usually the ratio of the luminous flux of visible light at wavelengths of 380-780 nm, UVA transmissivity is usually the ratio of UVA to UVA radiation flux, and IR transmissivity is the ratio of IR radiation flux at wavelengths over 780 nm.

        LED light source or halogen tungsten lamp is usually used as the lighting source in the transmissometer. From the test results, different lighting sources have a certain influence on the transmittance test results, usually affecting about 5% .

        Many standards and documents clearly state that the D65 standard illuminator is the most ideal illuminator for transmissometers. The D65 standard lighting source is the Earth's average northern hemisphere solar spectrum, so the transmittance tested under this light source condition is very representative and easily accepted by the public. For example, outdoor glass, UV sunscreen glasses and other related standards clearly state that the D65 light source should be used for transmittance testing. HowLver, the light source used by the common transmittance meter is far from the D65 standard lighting source, so the test results are not very good.

        CI800 spectroradiometer can use outdoor sunlight (as close as possible to the D65 standard lighting source) as the lighting source, after two tests, very convenient test glasses, architectural glass in D65 standard lighting source under the condition of transmittance.
