I  Product Overview

       CI350 spectroradiometer is a cost effective luminance meter. The luminance meter uses multichannel filter as a spectroscopic component, which can collect the  wavelength 400~700 nm, and output 1 nm interval   irradiance spectrum. The instrument has a measuring angle of 1 ° , a minimum measuring area of φ6 mm and a maximum measuring range of 100,000 cd/㎡.

       The instrument is equipped with a 1.14-inch TFT screen, 800 mAh Li-ion battery, Bluetooth / WIFI multi-function chip, Mass storage device.

       The instrument has single measurement and continuous measurement modes. The instrument can be measured by a stand-alone machine, and can also be connected to a computer or an APP through USB or Bluetooth. It has powerful functions, simple operation and high cost performance.

       The instrument is widely used in the following areas: display brightness chromaticity coordinate detection； automated detection of light source modules or applications of ambient light,；as a light detection module embedded in other equipment occasions； LED lighting source and various light-emitting module photometric parameter measurement,；shopping malls/schools/factories/municipal engineering lighting source evaluation,；traffic light  assesment； multimedia industry CRI color rendering index, CQS fidelity and gamut and other parameters measurement.

       The instrument has rich interfaces, compact structure and high cost performance, which is very suitable for embedding into other equipment as a light detection module.

II  Product Characteristics

     1. The instrument uses multi-channel filter for light splitting, and uses CMOS as the detector, which has high performance-price ratio. The instrument can be used to collect the spectrum of ambient light and scintillation light source in the wavelength range of 400-700 nm, and output the spectrum of 1 nm.

       2. The instrument adopts Internet of things MCU processor, configuration 1.14 inch TFT color screen, can store 99 records of data, simple operation, easy to expand and secondary development.

      3. The instrument is equipped with a 800 mAh lithium-ion battery. It is also equipped with Type-C and Bluetooth 5.0 interfaces, with a reserved WIFI interface. These rich expansion interfaces are highly suitable for secondary development and have a wide range of application scenarios.

      4. The instrument has compact appearance design, convenient interface design, and is easy to be used as a link of Internet of things and embedded in other modules.

      5. The instrument can test spectrum, Lv , color temperature, color rendering index, CQS, and other parameters, with wide applications.

     6. The instrument has M5 metric stainless steel nuts, and supports serial port, Modbus, Bluetooth communication, and has a rich SDK development kit, can be quickly deployed in C++ , C # , Python, LabVIEW platform to run, make it widely used in the automatic industry.

     7. The instrument has professional PC software, Rich SDK (support C # , C + + , Python, LabView and other platforms) .

III  Applications

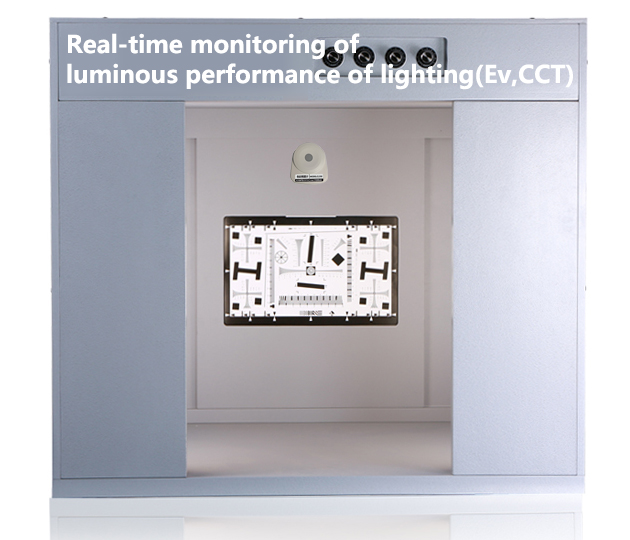

3.1 LED and solid-state lighting source spectrum, Lv, color temperature, color rendering index, uniformity, dominant wavelength, S/p, luminous flux and other parameters test

      CI350 color luminance meter stand-alone instrument can easily realize spectrum, Lv, color temperature, color rendering index, dominant wavelength, S/P, peak wavelength, plant lamp parameters, flash measurement, camera white balance and other parameters measurement.

      The luminous flux can be measured by integrating sphere. With the help of professional HIQC software, the chromaticity coordinate measurement and classification of LED solid-state light source can be easily realized.

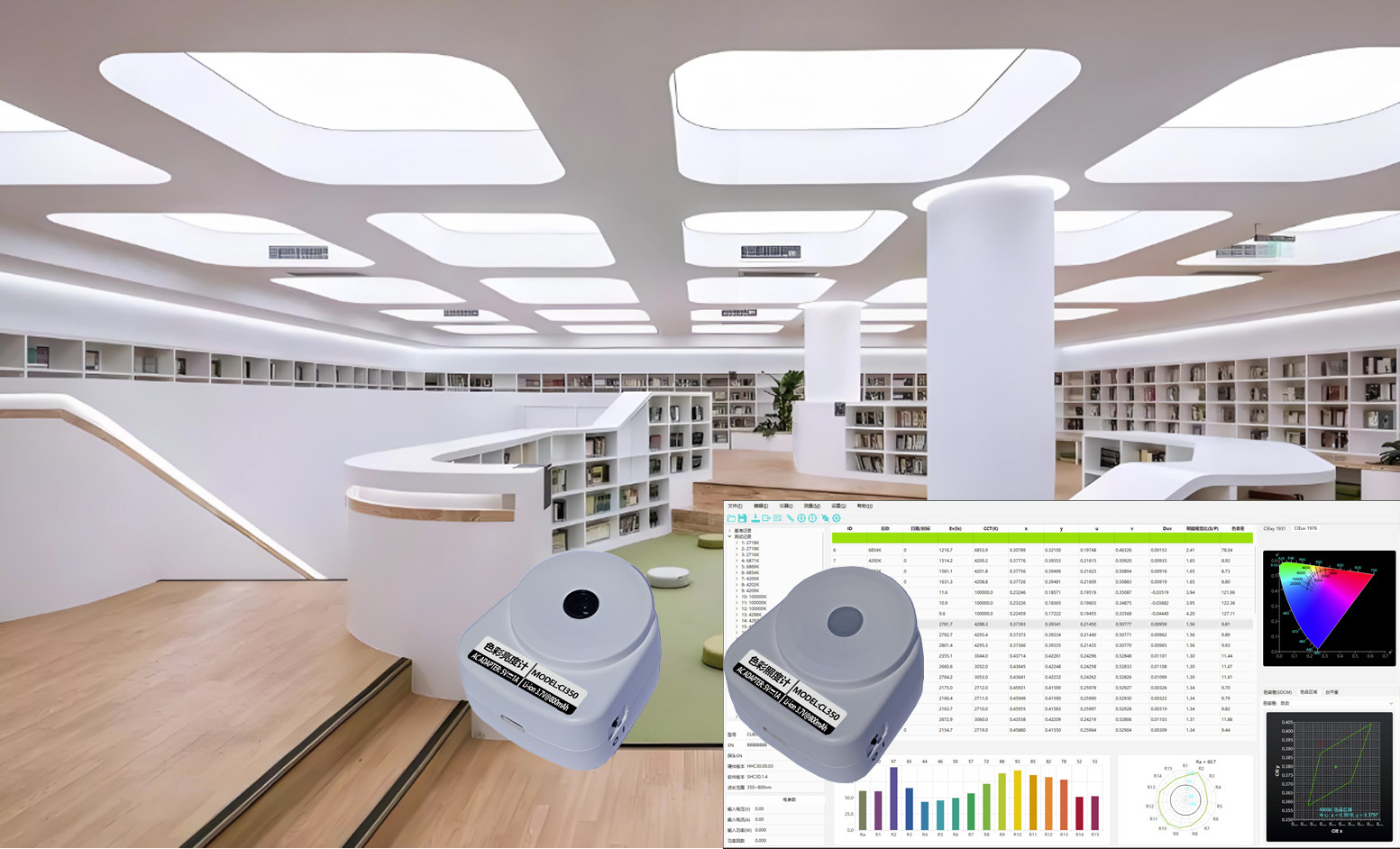

3.2 Lv, color temperature, color rendering index, dominant wavelength measurement for library and office lighting sources

     Many lighting standards have certain requirements for the Lv, color temperature, color rendering index and other indicators of municipal engineering lighting and office lighting. CI350 color illumination can be used to measure the above indicators in real time.

3.3 Lv and chromaticity coordinates  measurement of Display panel/LCD

     The display panel/LCD will be lit and preheated for half an hour. CI350 probe is attached to the display panel/LCD surface. The control display panel/LCD displays different colors, and the CI350 spectroradiometer measures the Lv, chromaticity coordinates and radiance spectrum of the display panel/LCD, and then calculates the color gamut, uniformity of the display panel/LCD, and can do GAMMA/DICOM/color correction.

IV  Dimensions

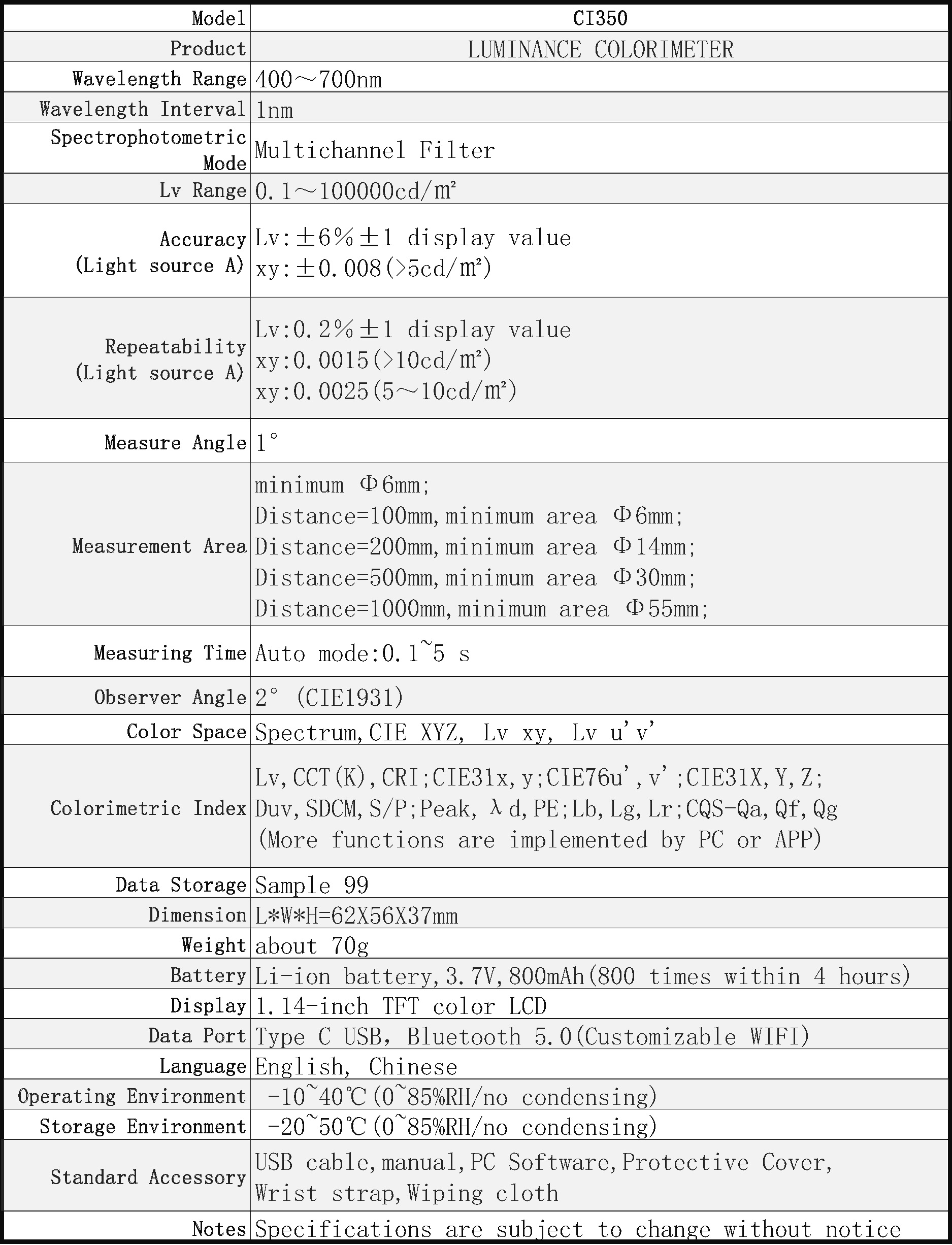

V  Technical Parameter
