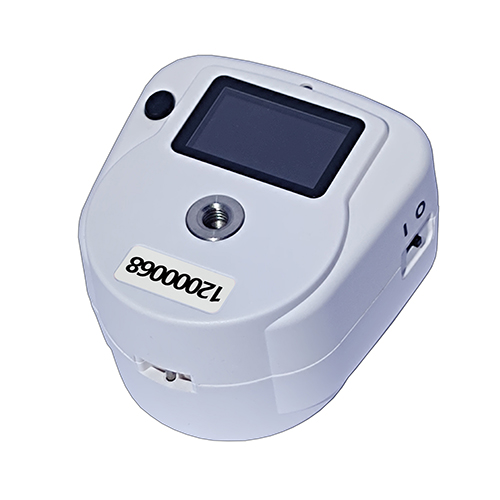

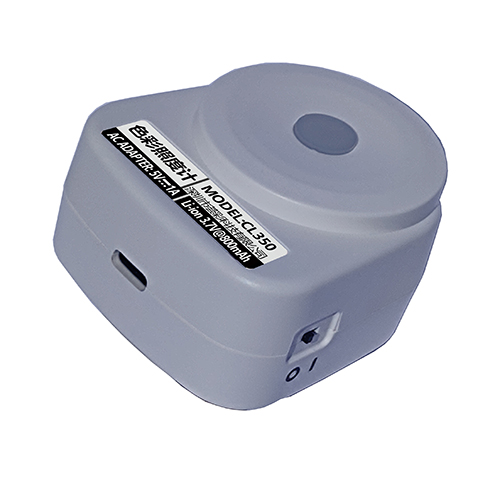

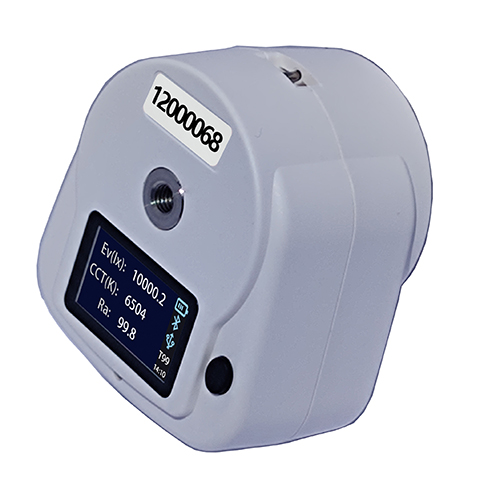

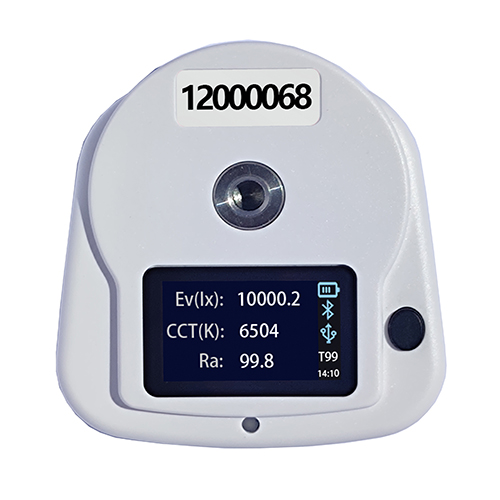

CL350 IRRADIANCE COLORIMETER
☆ Wavelength Range： 400～700nm,integral irradiance of IR(center 910nm,halfWidth 100nm);
☆ Wavelength Interval：1nm;
☆ Spectrophotometric Mode： Multichannel Filter
☆ Ev Range：0.1～200000lx;
☆ Cosine Response：Ev:<=5％;
☆ Measurement Mode:：Auto mode ;
☆ Display：1.14-inch TFT color LCD;
☆ Battery： Li-ion battery,3.7V,800mAh(1000 measurements within 4 hours);
☆ Data Port：Type C USB，Bluetooth 5.0(Customizable WIFI);
☆ Data Storage：Sample 99 Pcs;
☆ Dimension： L*W*H= 62X56X37mm;
I Product Overview
CL350 spectroradiometer is a cost effective illuminometer. The illuminometer uses multichannel filter as a spectroscopic component, which can collect the wavelength 400~700 nm, and outputs 1 nm interval irradiance spectrum, and the measurement range range can reach up to 200,000 lx.
The instrument is equipped with a 1.14-inch TFT screen, 800 mAh Li-ion battery, Bluetooth / WIFI multi-function chip, Mass storage device.
The instrument has single measurement and continuous measurement modes. The instrument can be measured by a stand-alone machine, and can also be connected to a computer or an APP through USB or Bluetooth. It has powerful functions, simple operation and high cost performance.
The instrument is widely used in the following areas: automatic detection of light source modules or ambient light；measurement of photometric parameters of LED lighting sources and various light-emitting modules；evaluation of lighting sources for shopping malls/schools/factories/municipal works； evaluation of lighting sources for industrial buildings；plant growth LED light source performance evaluation ；multimedia industry CRI color rendering index, CQS fidelity and color gamut measurement.
The instrument has rich interfaces, compact structure and high cost performance, which is very suitable for embedding into other equipment as a light detection module.
II Product Characteristics
1. The instrument uses multi-channel filter for light splitting, and uses CMOS as detector, which has high performance-price ratio. The instrument can be used to collect the spectrum of ambient light and scintillation light source in the wavelength range of 400-700 nm, and output the spectrum of 1 nm.
2. The instrument adopts Internet of things MCU processor, configuration 1.14 inch TFT color screen, can store 99 records of data, simple operation, easy to expand and secondary development.
3. The instrument is equipped with a 800 mAh lithium-ion battery. It is also equipped with Type-C and Bluetooth 5.0 interfaces, with a reserved WIFI interface. These rich expansion interfaces are highly suitable for secondary development and have a wide range of application scenarios.

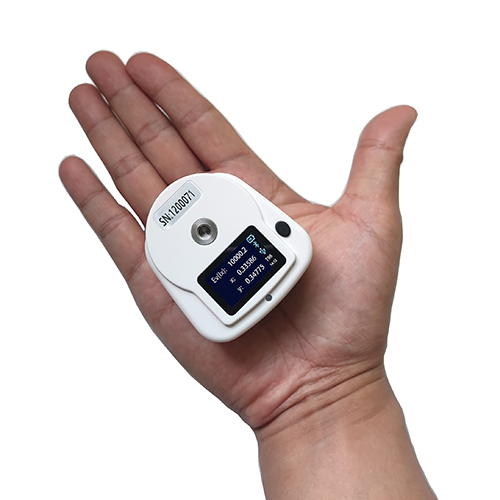

4. The instrument has compact appearance design, convenient interface design, and is easy to be used as a link of Internet of things and embedded in other modules.

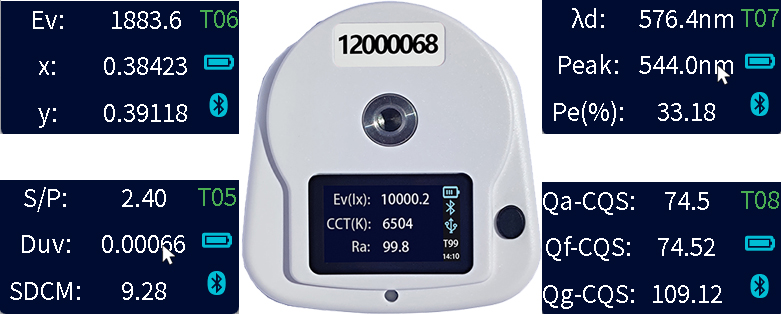

5. The instrument can test spectrum, Ev , color temperature, color rendering index, CQS, and other parameters, with wide applications.
6. The instrument has M5 metric stainless steel nuts, and supports serial port, Modbus, Bluetooth communication, and has a rich SDK development kit, can be quickly deployed in C++ , C # , Python, LabVIEW platform to run, make it widely used in the automatic industry.
7. The instrument has professional PC software, Rich SDK (support C # , C + + ，Python, LabView and other platforms) .
III Applications
3.1 LED , solid-state lighting source spectrum, Ev, color temperature, color rendering index, uniformity, dominant wavelength, S/p, luminous flux and other parameters test
CL350 color illuminometer stand-alone instrument can easily realize spectrum, Ev, color temperature, color rendering index, dominant wavelength, S/P, peak wavelength, plant lamp parameters, flash measurement, camera white balance and other parameters measurement.
The luminous flux can be measured by integrating sphere. With the help of professional HIQC software, the chromaticity coordinate measurement and classification of LED solid-state light source can be easily realized.
3.2 Illuminance, color temperature, color rendering index, dominant wavelength measurement for library and office lighting sources
Before measuring the display or liquid crystal panel, it should be turned on and preheated for half an hour. Attach the measurement port of the CI350 color luminance meter closely to the surface of the display screen, or maintain a certain distance according to actual needs (ensuring that the optical axis is perpendicular to the surface of the display). Then, operate the display or liquid crystal panel to make it display a variety of different colors in sequence. During this process, the CI350 color luminance meter can accurately collect the luminance, chromaticity coordinates, and radiance spectrum data of the display screen at a measurement angle of 1°. With these data, not only can the color gamut range and uniformity index of the display be further calculated, but also a series of operations such as GAMMA correction, DICOM correction, and color correction can be carried out smoothly.
IV Dimensions

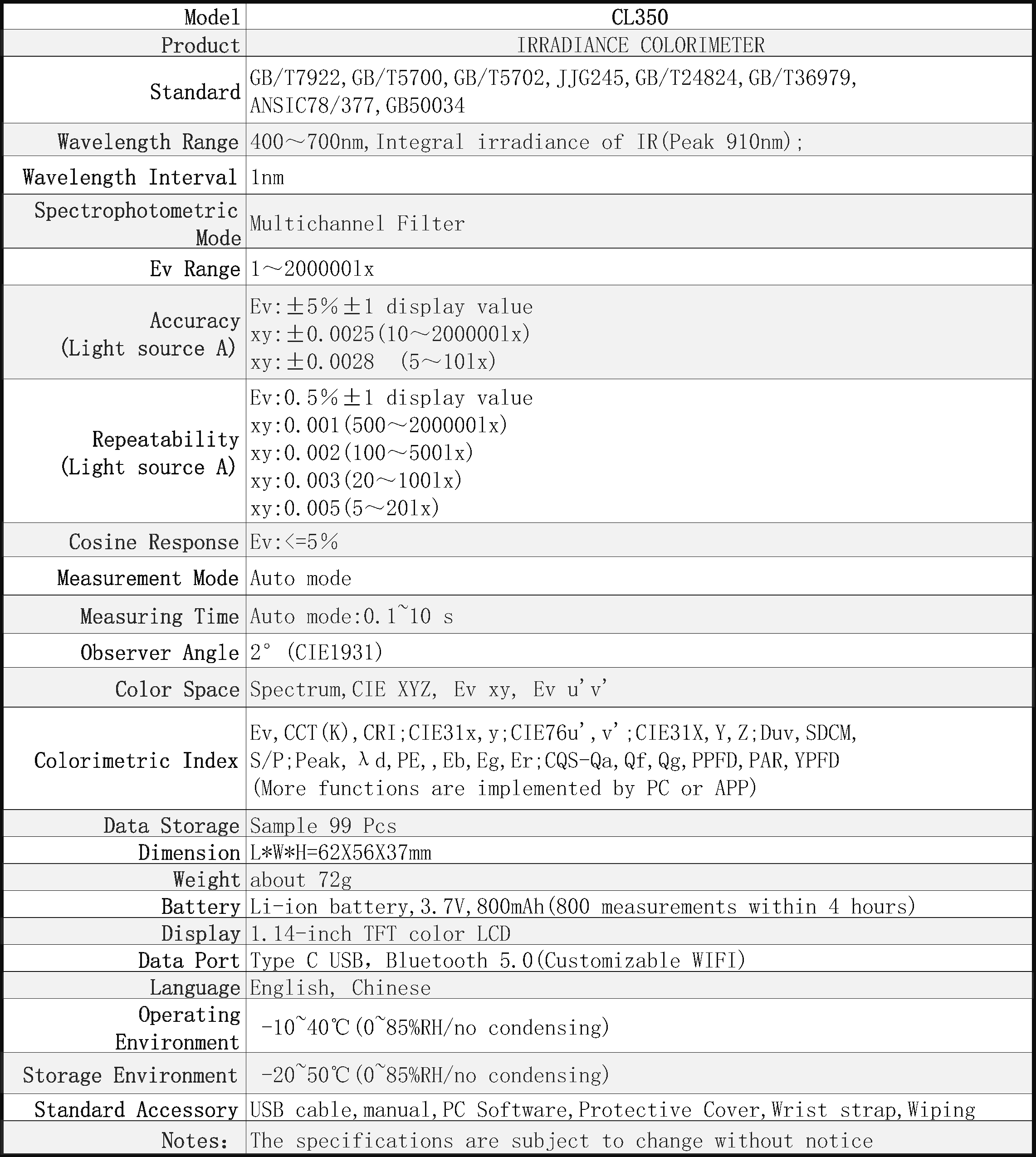

V Technical Parameter
