I  Product Overview

        CL500 spectroradiometer is a cost effective illuminometer.The illuminometer uses multichannel filter as a spectroscopic component, which can collect the  wavelength 400~700 nm, and collect the IR integral irradiation energy of 910 nm, and outputs 1 nm interval   irradiance spectrum, and the Ev range can reach up  to 200,000 lx.

        The instrument is equipped with a 2.8-inch TFT capacitive touch screen, 4000 mAh Li-ion battery, Bluetooth / WIFI multi-function chip, Mass storage device.

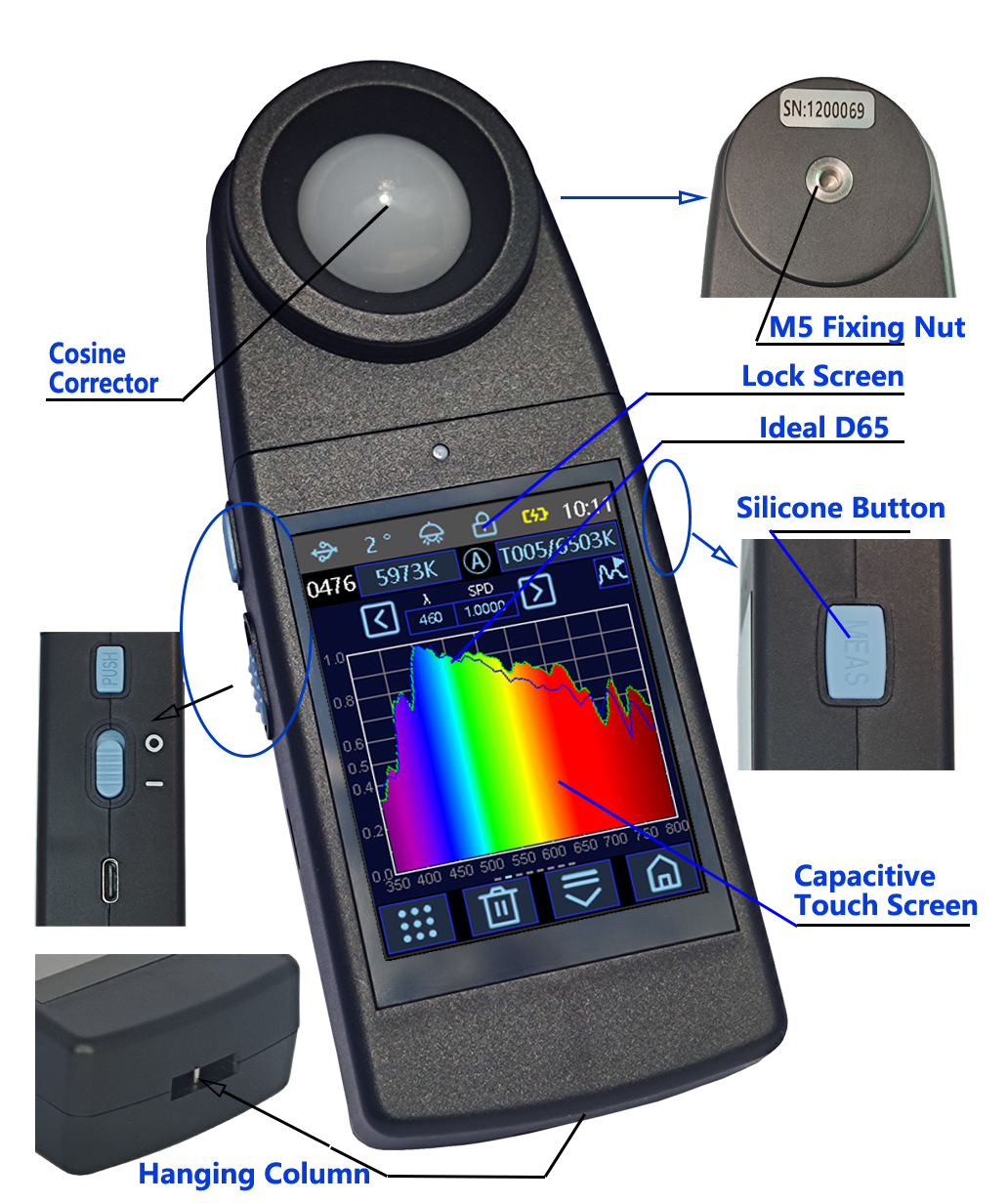

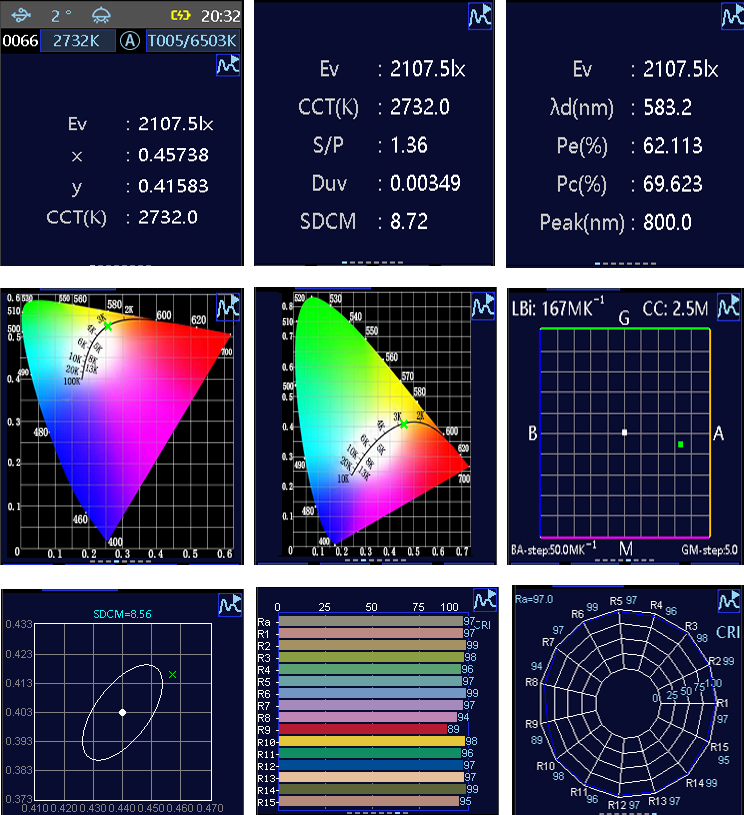

        The instrument can not only measure the irradiance spectrum, Ev, CCT,CRI, white balance, but also measure the parameters of  display color gamut, uniformity, CQS, TM-30, flicker and other parameters.

II  Product Characteristics

     1. The instrument uses multi-channel filter for light splitting, and uses CMOS as detector, which has high performance-price ratio. The instrument can be used to collect the spectrum of ambient light and scintillation light source in the wavelength range of 400-700 nm, and output the spectrum of 1 nm. At the same time, the instrument can collect the integrated infrared irradiance with the peak wavelength of 910 nm and the half-wave width of 100 nm.

      2. The instrument utilizes an industrial-grade MCU processor, equipped with a 2.8-inch TFT capacitive touch screen and up to 2,000 storage spaces. It features simple operation and stable performance.

      3. The instrument is equipped with a 4000 mAh lithium-ion battery, offering a long standby time. It is also equipped with Type-C and Bluetooth 5.0 interfaces, with a reserved WIFI interface. These rich expansion interfaces are highly suitable for secondary development and have a wide range of application scenarios.

     4. A novel and fashionable appearance design based on ergonomics.

     5. The instrument can test not only spectrum, Ev , color temperature, color rendering index, but also white balance,display color gamut, uniformity, CQS, transmittance and other parameters, with wide applications.

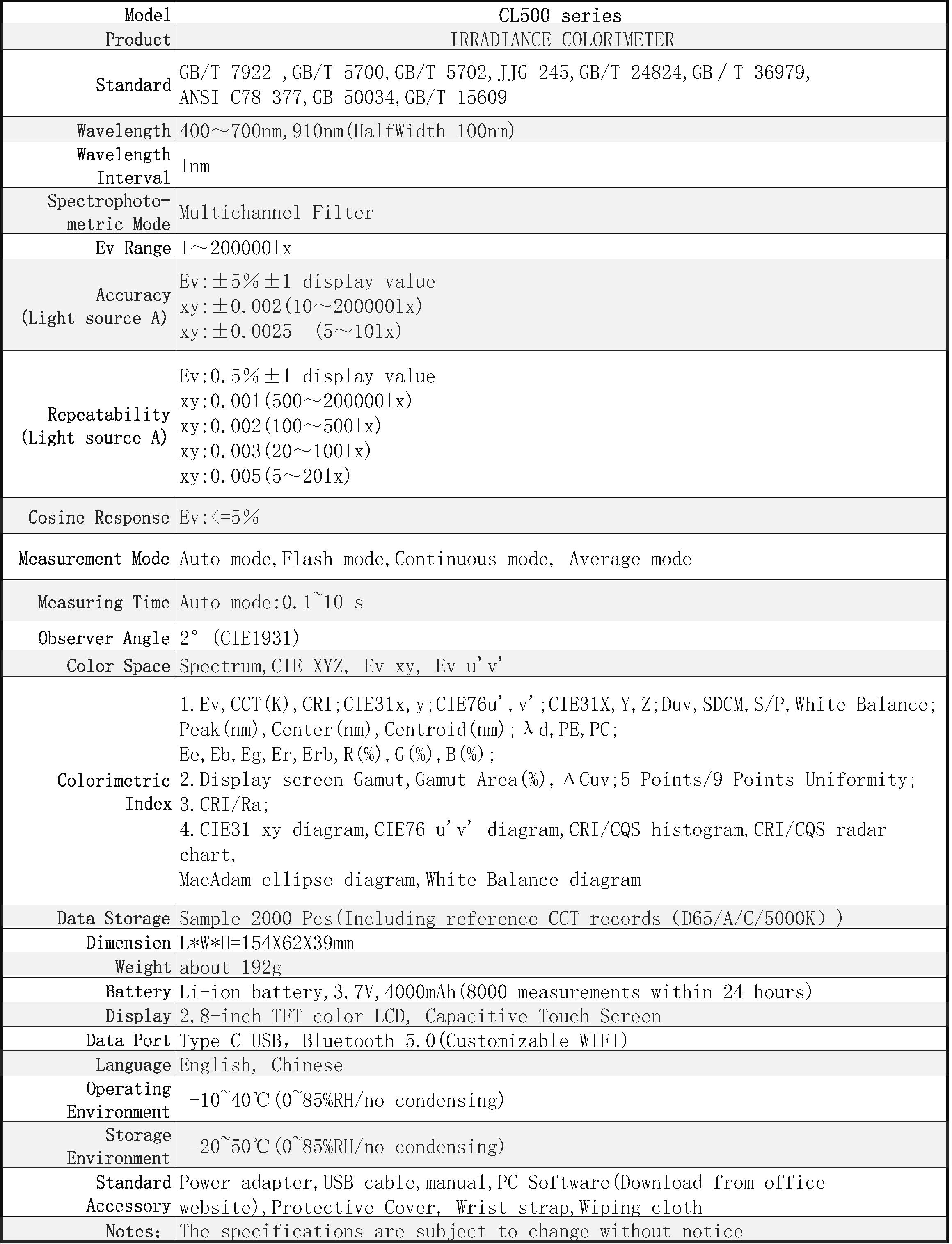

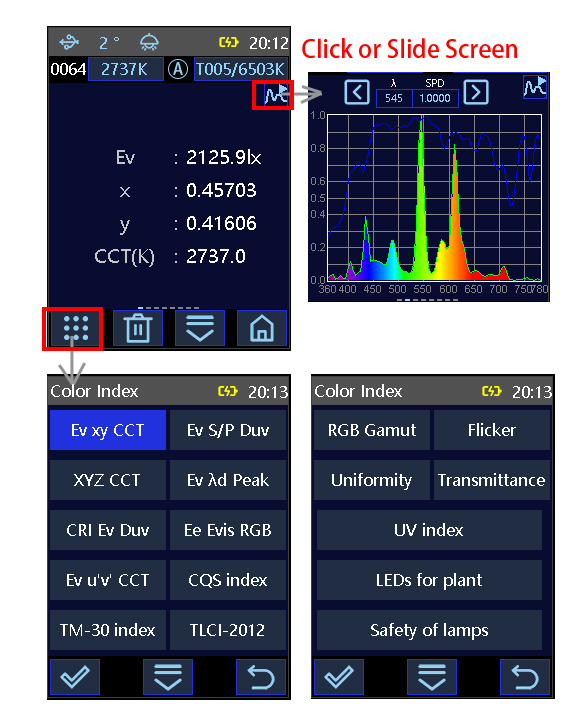

     6. The instrument has multiple testing functions, with the functional modules being humanizedly distinguished, and the operation is simple, smooth and fluent.

     7. The instrument is built with the radiation spectra of standard illuminants such as D65, A, C, D50, and D75. In the comparison mode, it is very convenient to conduct spectral comparisons with the samples to be tested.

     8. The measurement interface of the instrument can be locked to avoid misoperation; the measurement head of the instrument is detachable and can be installed in the opposite direction by 180 degrees, which is convenient to use.

     9. The instrument test results have a good matching with the data of the  high-quality color illuminometer recognized in the industry.

    10. The instrument is widely applied in LED lighting industry, engineering lighting, smart agriculture, display screens, TV multimedia, eye-protecting lamps, UV ultraviolet, and so on.

    11. The instrument has professional PC software, Rich SDK (support C # , C + + , Python, LabView and other platforms) .

III  Applications

(Note:CL500 and CL800 operation mode is the same, the picture of some instruments using CL800 for demonstration)

3.1 LED and solid-state lighting source spectrum, Ev, color temperature, color rendering index, uniformity, dominant wavelength, S/p, luminous flux and other parameters test

      CL500 color illuminometer stand-alone instrument can easily realize spectrum, Ev, color temperature, color rendering index, dominant wavelength, S/P, peak wavelength, plant lamp parameters, flash measurement, camera white balance and other parameters measurement.

      The luminous flux can be measured by integrating sphere. With the help of professional HIQC software, the chromaticity coordinate measurement and classification of LED solid-state light source can be easily realized.

3.2 Color temperature(CCT), Color rendering index(CRI), Uniformity measurement of Light  box or Display panel

      The main technical indexes of the light box include the following: the standardization of the spectral distribution of the light source, the display uniformity of the illumination of the light source, the stability of the light source, the color temperature and color rendering index of the light source, and the life of the light source. CL500 color illuminometer can easily measure the stability, uniformity and spectral matching of the light box.

3.3 Transmittance Test

       Transmittance is the ratio of the luminous flux (radiant flux) of light passing through the measured object to the incident luminous flux (radiant flux) . The transmittance of visible light is usually the ratio of the luminous flux of visible light at wavelengths of 380-780 nm, UVA transmissivity is usually the ratio of UVA to UVA radiation flux, and IR transmissivity is the ratio of IR radiation flux at wavelengths over 780 nm.

       LED light source or halogen tungsten lamp is usually used as the lighting source in the transmissometer. From the test results, different lighting sources have a certain influence on the transmittance test results, usually affecting about 5% .

       Many standards and documents clearly state that the D65 standard illuminator is the most ideal illuminator for transmissometers. The D65 standard lighting source is the Earth's average northern hemisphere solar spectrum, so the transmittance tested under this light source condition is very representative and easily accepted by the public. For example, outdoor glass, UV sunscreen glasses and other related standards clearly state that the D65 light source should be used for transmittance testing. However, the light source used by the common transmittance meter is far from the D65 standard lighting source, so the test results are not very good.

      CL500 color illuminometer can use outdoor sunlight (as close as possible to the D65 standard lighting source) as the lighting source, after two tests, very convenient test glasses, architectural glass in D65 standard lighting source under the condition of transmittance.

3.4 Illuminance, color temperature, color rendering index, dominant wavelength measurement for library and office lighting sources

       Many lighting standards have certain requirements for the illumination, color temperature, color rendering index and other indicators of municipal engineering lighting and office lighting. CL500 color illumination can be used to measure the above indicators in real time.
